Tele Wiring Kits
Wiring Kits for Telecaster-style guitars. Ordering made easy (and cheaper)! All you need to upgrade the electronics in your guitar with one order. All Axetec wiring kits come with the very clear diagrams and extremely useful instructions + tips on wiring and soldering.
TLKIT01 — Tele Orange Drop Wiring Kit (Enclosed Switch)
Complete Tele-style wiring kit — everything you need to upgrade the electronics in your guitar in a single order.
Built around an enclosed 3-way switch for the cleanest installation. Choose pot value, capacitor value and switch-tip colour below.
From £13.25 inc. VAT · complete kit
- Pots
- 2 × logarithmic, 250K or 500K (your choice)
- 3-way switch
- Enclosed (low-profile)
- Jack socket
- Mono jack socket
- Capacitor
- 1 × Orange Drop (.022 µF or .047 µF)
- Wire
- 2 m hook-up wire · 1 m tinned copper bus wire
- Diagram
- Clear printed wiring diagram for T-style guitars
TLKIT02 — Tele Orange Drop Wiring Kit (Wafer Switch)
The traditional Tele build — same Orange Drop loom, but with a classic 3-way wafer switch.
Requires 35 mm minimum mounting depth — Squier owners should check the control-cavity depth before ordering. Choose pot value, capacitor value and switch-tip colour below.
From £14.25 inc. VAT · complete kit
- Pots
- 2 × logarithmic, 250K or 500K (your choice)
- 3-way switch
- Wafer switch (requires 35 mm minimum mounting depth)
- Jack socket
- Mono jack socket
- Capacitor
- 1 × Orange Drop (.022 µF or .047 µF)
- Wire
- 2 m hook-up wire · 1 m tinned copper bus wire
- Diagram
- Clear printed wiring diagram for T-style guitars
TLKIT04 — Tele 4-Way Orange Drop Wiring Kit
Squeeze every last drop of tone from your Tele — the 4-way blade switch adds a series Bridge + Neck position for a fatter, higher-output voice.
Position 1: Bridge · Position 2: Bridge + Neck (parallel) · Position 3: Neck · Position 4: Bridge + Neck (series).
From £14.95 inc. VAT · complete kit
- Pots
- 2 × logarithmic, 250K or 500K (your choice)
- Switch
- 4-way wafer (35 mm deep — fits conventional Tele routings)
- Jack socket
- Mono jack socket
- Capacitor
- 1 × Orange Drop (.022 µF or .047 µF)
- Wire
- 2 m hook-up wire · 1 m tinned copper bus wire
- Diagram
- Clear printed wiring diagram for T-style guitars (4-way)

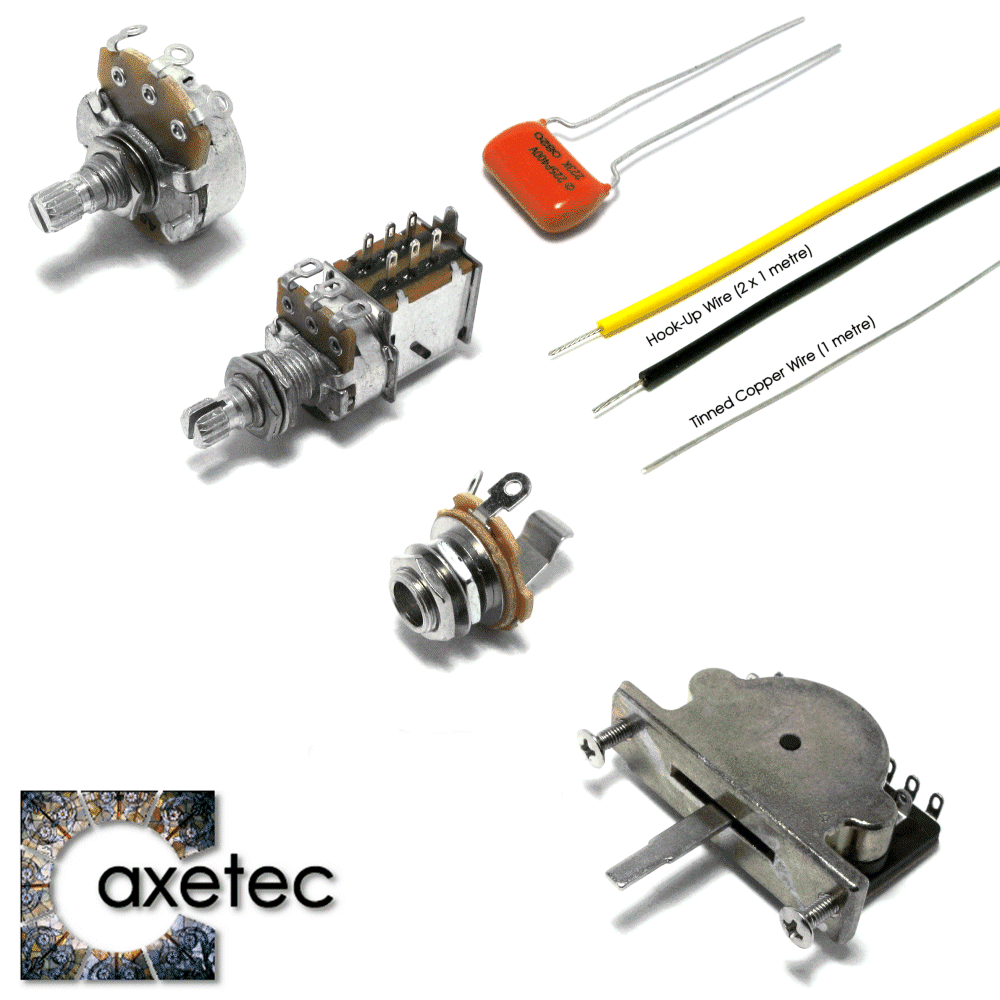

TLKIT06 — Tele Wiring Kit for Steel Twin-II
Built specifically for Teles fitted with a pair of IronGear Steel Twin-II pickups — IronGear-recommended component values throughout, plus a switched volume pot.
Choose between push-pull or push-push switched pots and pick your switch-tip colour below.
From £17.45 inc. VAT · complete kit
- Pots
- 2 × 500K logarithmic — one switched (volume)
- 3-way switch
- Enclosed (low-profile)
- Jack socket
- Mono jack socket
- Capacitor
- 1 × .047 µF Orange Drop
- Wire
- 2 m hook-up wire · 1 m tinned copper bus wire
- Diagram
- Wiring diagram for Steel Twin-II / Tele
