Pot Sets
Pre-matched potentiometer sets for Strat, Tele, Les Paul, SG and 335 — plus tone caps, treble-bleed networks and hook-up wire.

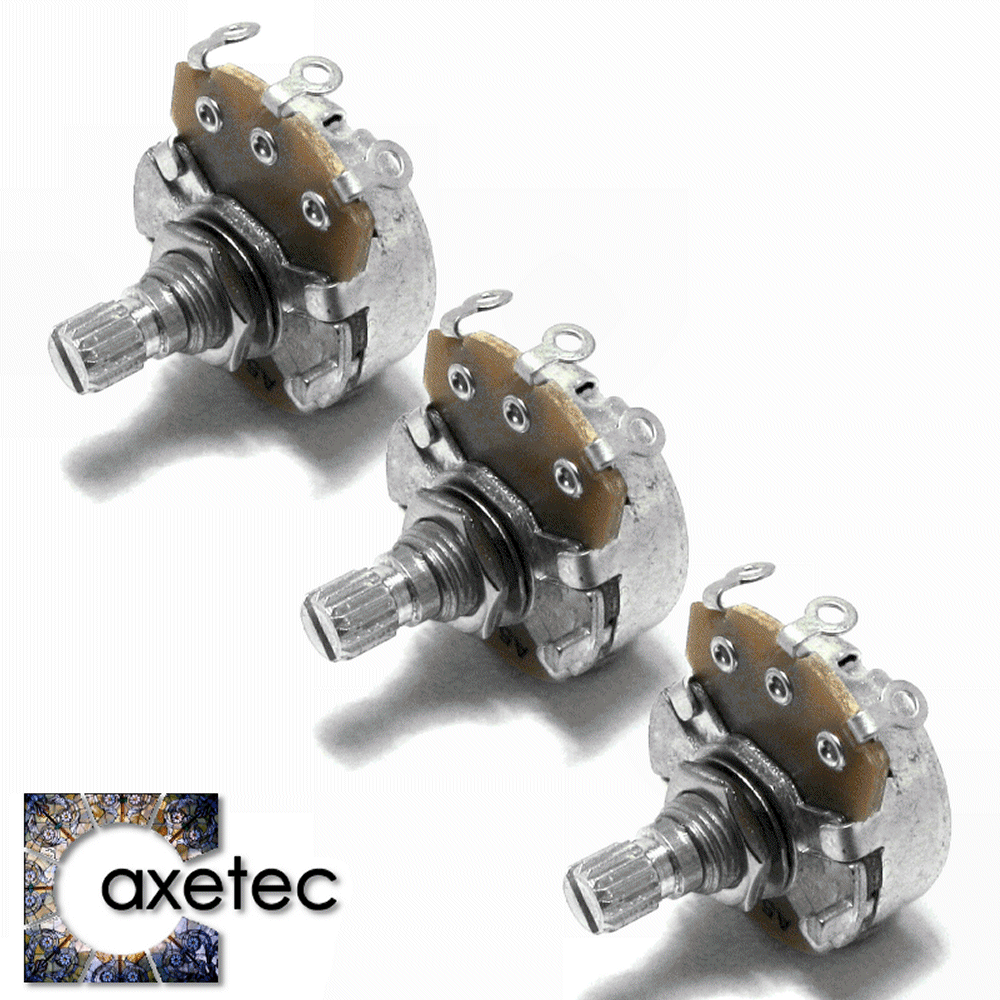

PTST33 — Strat Pot Set
3 × excellent-quality pots — sized for Stratocaster scratchplate mounting.
10 mm collars (length of the threaded shaft). For scratchplates with 8 mm potentiometer holes. Choose 250k (recommended for single coils) or 500k.
From £7.95 inc. VAT · Set of 3 Log pots (volume + 2 tone)
- Quantity
- 3 × Log pots
- Collar
- 10 mm
- Resistance
- 250k or 500k Ohm
- Hole Diameter
- For 8 mm scratchplate holes
- Best For
- Stratocaster (volume + 2 tone)

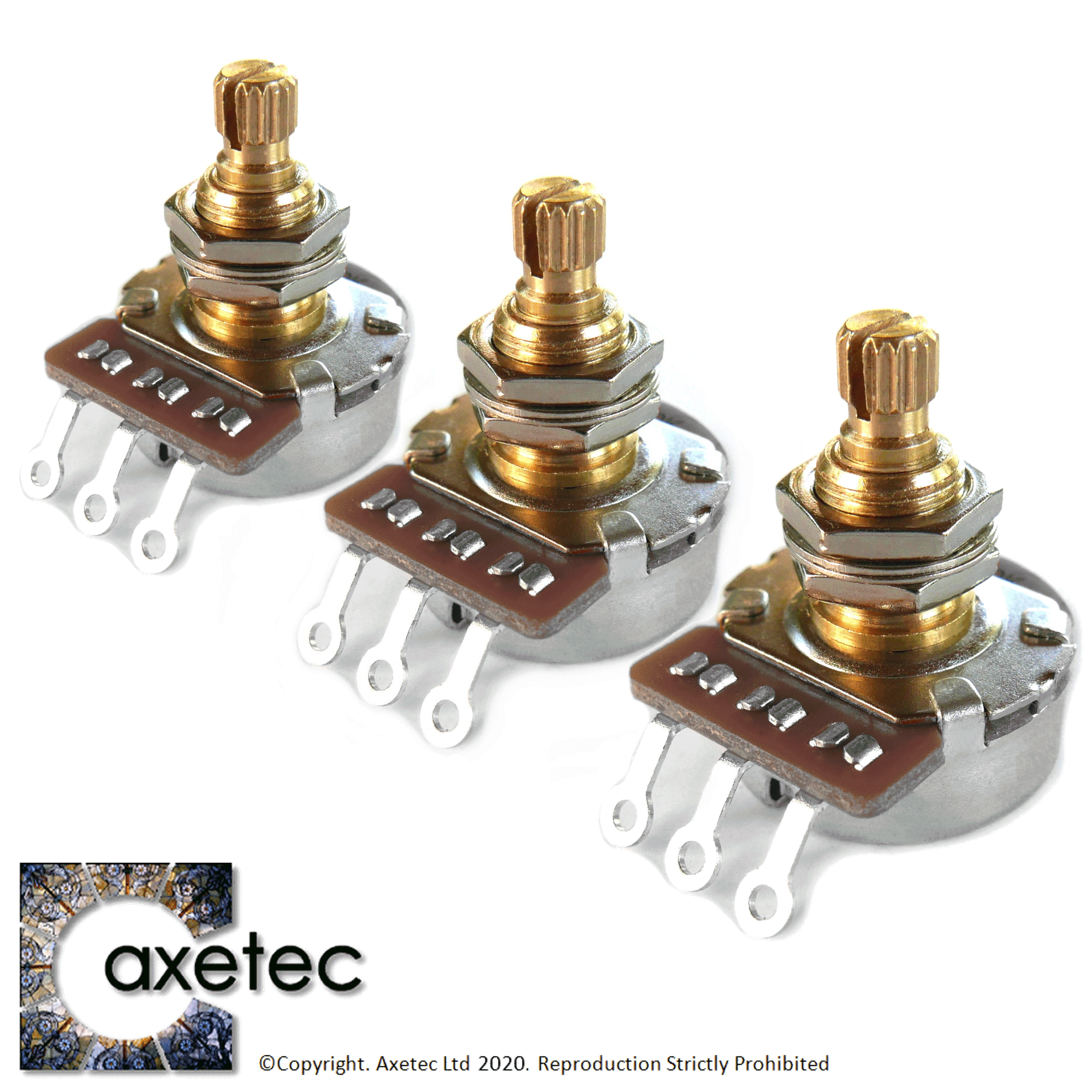

PTST35 — Superior Strat Pot Set
3 × superior-quality 250k Log pots for Stratocaster.
10 mm × 9.5 mm solid-brass collars — fits scratchplates with 9.5 mm or 10 mm potentiometer holes (some scratchplates may need a light easing of the holes).
£11.45 inc. VAT · Set of 3 Superior 250k Log pots
- Quantity
- 3 × Superior Log pots
- Collar
- 10 mm × 9.5 mm solid brass
- Resistance
- 250k Ohm
- Hole Diameter
- 9.5 mm or 10 mm scratchplate holes
- Best For
- Stratocaster (volume + 2 tone)

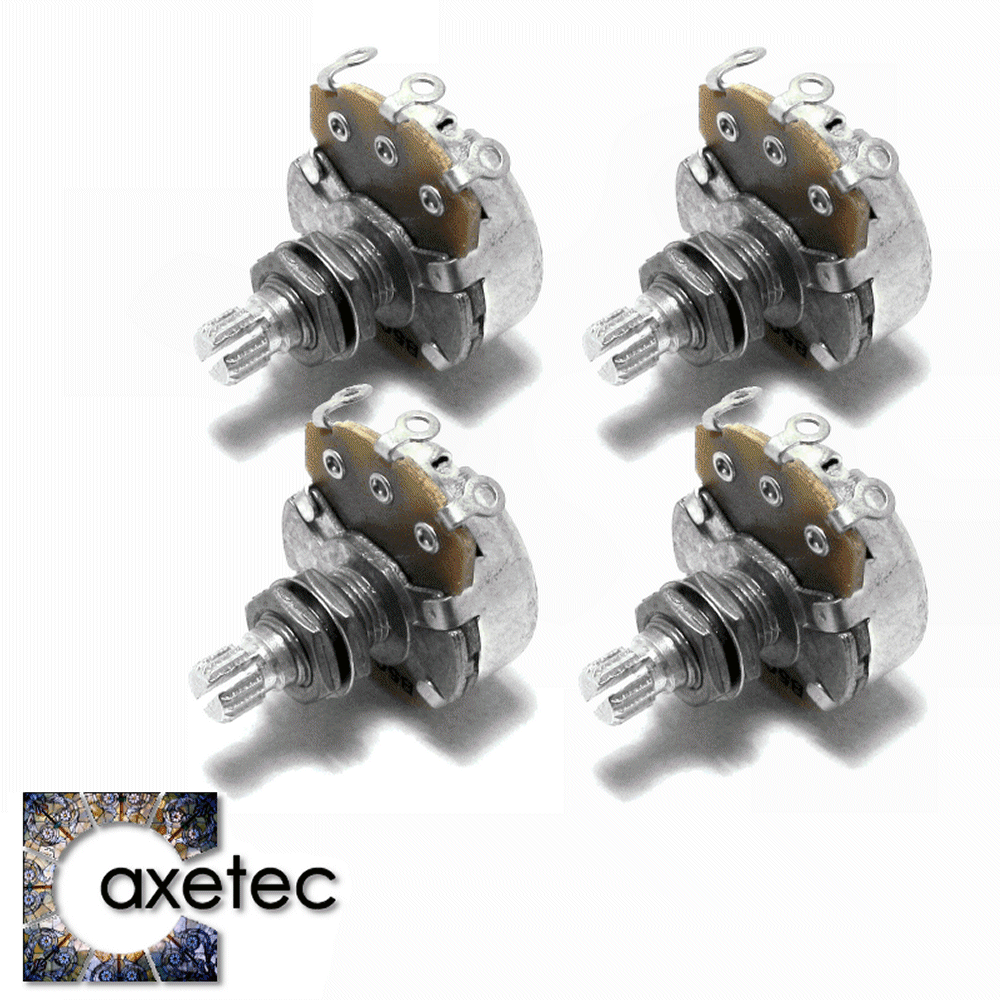

PTST44 — LP Pot Set (10 mm Collar)
4 × full-size 500k Log pots — for Les Paul / SG / 335 builds with 10 mm collar fitting.
Suitable for Epiphones and other "import" brands where the pot is fitted through the wooden top.
£10.75 inc. VAT · Set of 4 × 500k Log pots
- Quantity
- 4 × Log pots
- Collar
- 10 mm
- Resistance
- 500k Ohm
- Best For
- Epiphone / import LP / SG / 335 builds

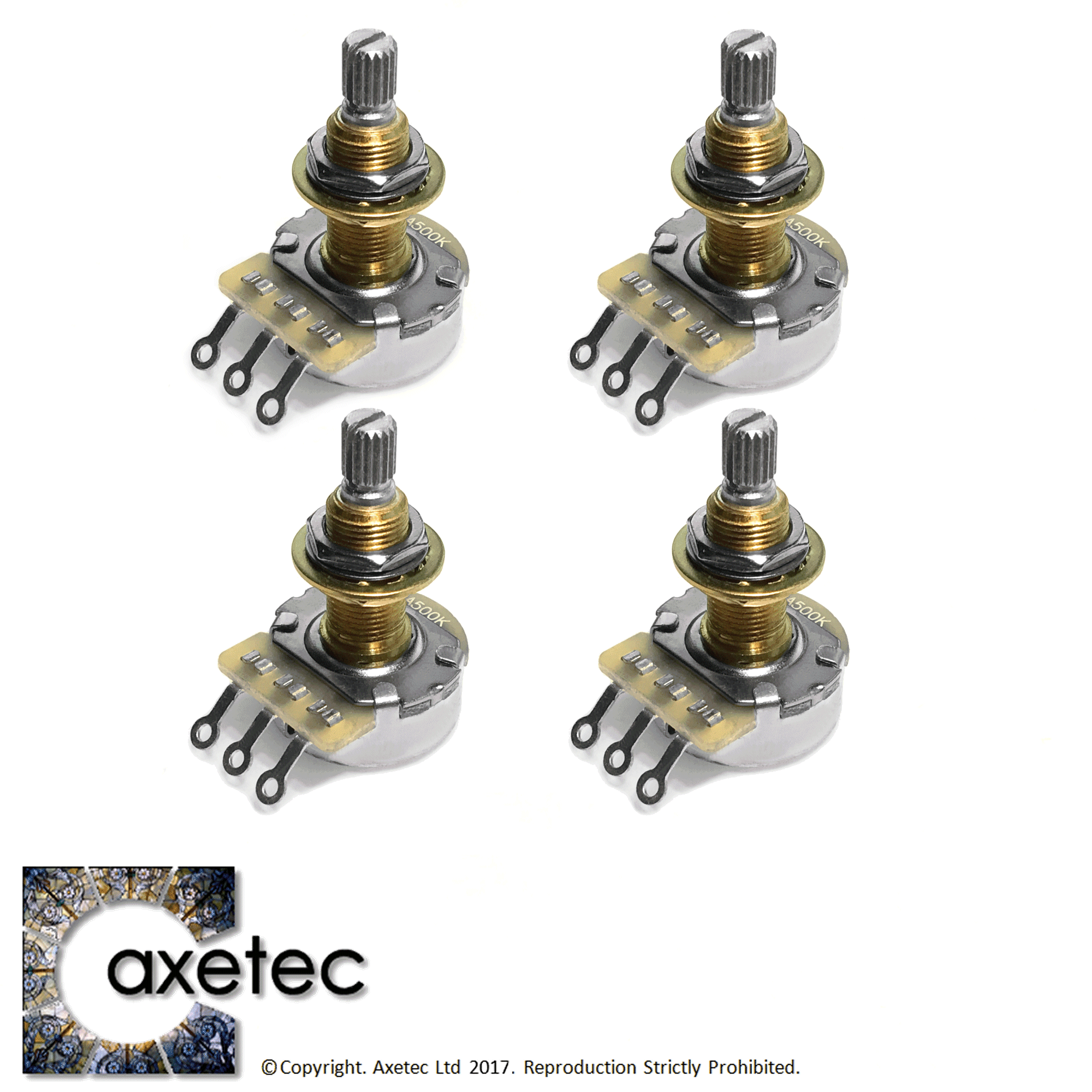

PTST48 — Superior LP Pot Set (18 mm Collar)
4 × superior 500k Log pots — for Les Paul / SG / 335 builds with thicker carve tops.
18 mm collars — ideal for US-manufactured Les Pauls. Each pot supplied with 2 nuts for height adjustment.
£17.95 inc. VAT · Set of 4 × Superior 500k Log pots
- Quantity
- 4 × Superior Log pots
- Collar
- 18 mm × 9.5 mm solid brass
- Resistance
- 500k Ohm
- Best For
- US-spec Les Paul / thick-top builds

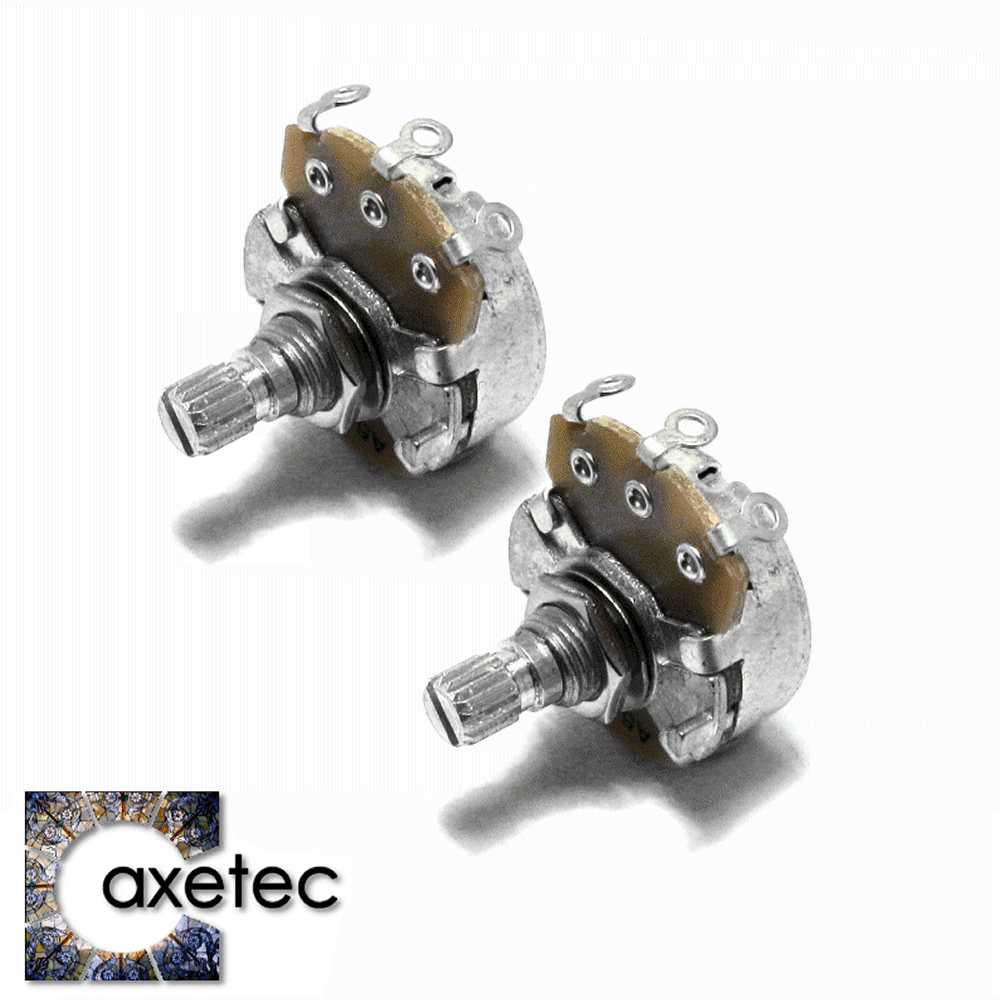

PTST22 — Tele Pot Set
2 × excellent-quality pots — sized for Telecaster control-plate mounting.
10 mm collars (length of the threaded shaft). Choose 250k (recommended for single coils) or 500k.
From £5.45 inc. VAT · Set of 2 Log pots (volume + tone)
- Quantity
- 2 × Log pots
- Collar
- 10 mm
- Resistance
- 250k or 500k Ohm
- Best For
- Telecaster control plate (volume + tone)
CPTN06 — Orange Drop Tone Capacitors
Orange Drop capacitors — widely accepted as the best caps for guitar tone circuits.
Four classic values: .047 µF (single coils), .033 µF (general-purpose), .022 µF (humbuckers), and .1 µF (active pickups).
£1.65 inc. VAT · Single Orange Drop capacitor
- Type
- Orange Drop tone cap
- Values
- .022 µF · .033 µF · .047 µF · .1 µF
WRVCCW — Vintage Cloth-Covered Wire
22 AWG waxed cloth-covered wire — push back the cloth to reveal pre-tinned conductors.
Vintage look, super-easy to work with. Two ~2 ft lengths — cream and black.
£4.95 inc. VAT · 2 × ~2 ft of 22 AWG cloth-covered wire (cream + black)
- Gauge
- 22 AWG
- Insulation
- Waxed cotton cloth (no stripping needed)
- Length
- 2 × ~2 ft (cream + black)
WRVBW — Vintage Cloth Braided Wire
22 AWG braided wire with waxed-cloth inner insulation.
One 5 ft length — enough for a Les Paul build including three runs to the selector switch.
£9.95 inc. VAT · 5 ft of 22 AWG vintage braided wire
- Gauge
- 22 AWG
- Insulation
- Waxed cotton cloth (inner) + woven outer braid
- Length
- 1 × 5 ft (single colour)
WRHUW — Hook-Up Wire (Yellow + Black)
22 AWG hook-up wire with heavy-duty insulation.
Two ~1 m lengths — yellow and black — perfect for internal guitar wiring of pots, jacks and switches.
£3.95 inc. VAT · 2 × ~1 m of 22 AWG wire (yellow + black)
- Gauge
- 22 AWG
- Insulation
- Heavy-duty PVC
- Length
- 2 × ~1 m (yellow + black)

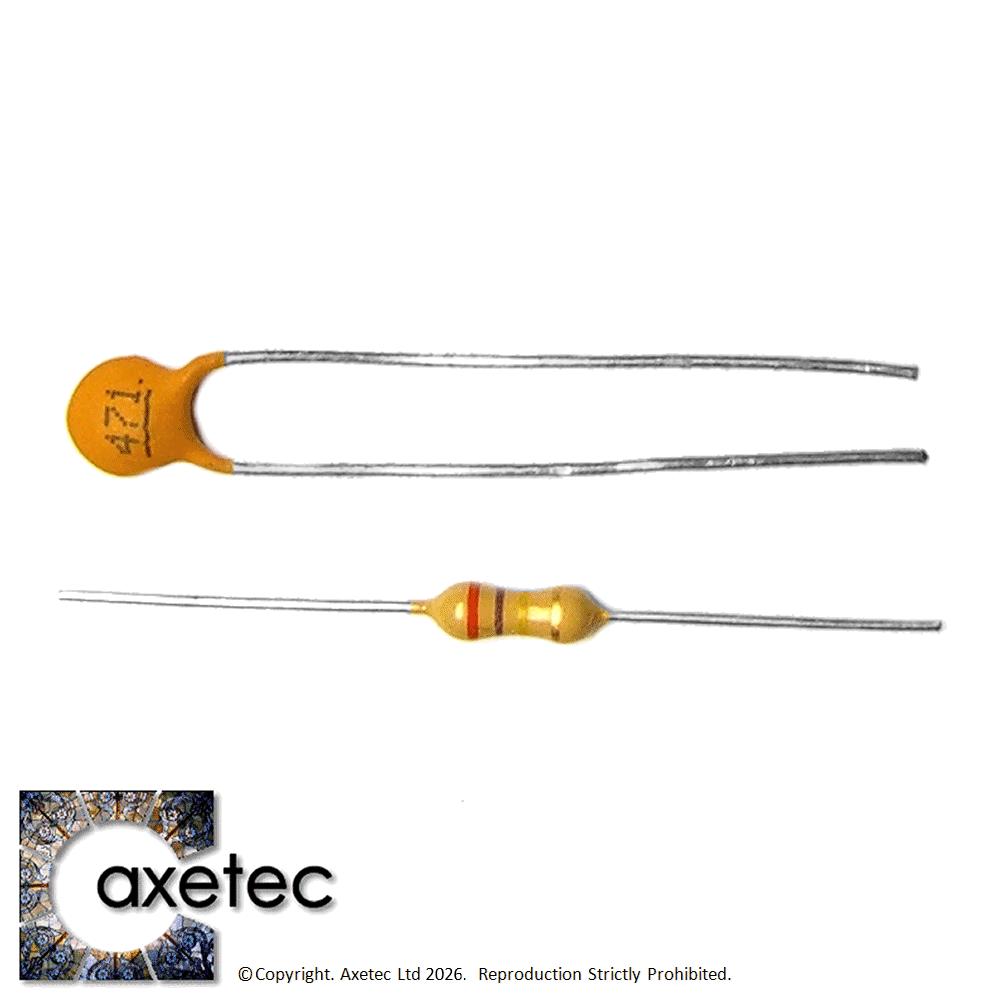

CRTC01 — Treble Compensation Network
Pre-built capacitor + resistor "treble bleed" network.
Wires across the volume pot to keep top-end clarity as you back off the volume — no more dull, muddy clean tones at low settings.
£0.50 inc. VAT · Single treble-bleed network
- Type
- Cap + resistor in parallel
- Function
- Treble-bleed (preserves brightness at low volume)
PTNT01 — Potentiometer Nuts
Replacement chrome pot nuts — single nuts.
Suitable for use with PT0001, PT0002 and PTSW01 / PTSW03 pots. (All our pots are supplied with their own nuts — you only need these as spares.)
£0.10 inc. VAT · Single chrome pot nut
- Finish
- Chrome
- Compatibility
- PT0001 · PT0002 · PTSW01 · PTSW03
