LP-Style Bridges
Tune-o-matic bridges and tailpiece for Les Paul, SG and 335 — ABR, Nashville and roller-saddle styles.

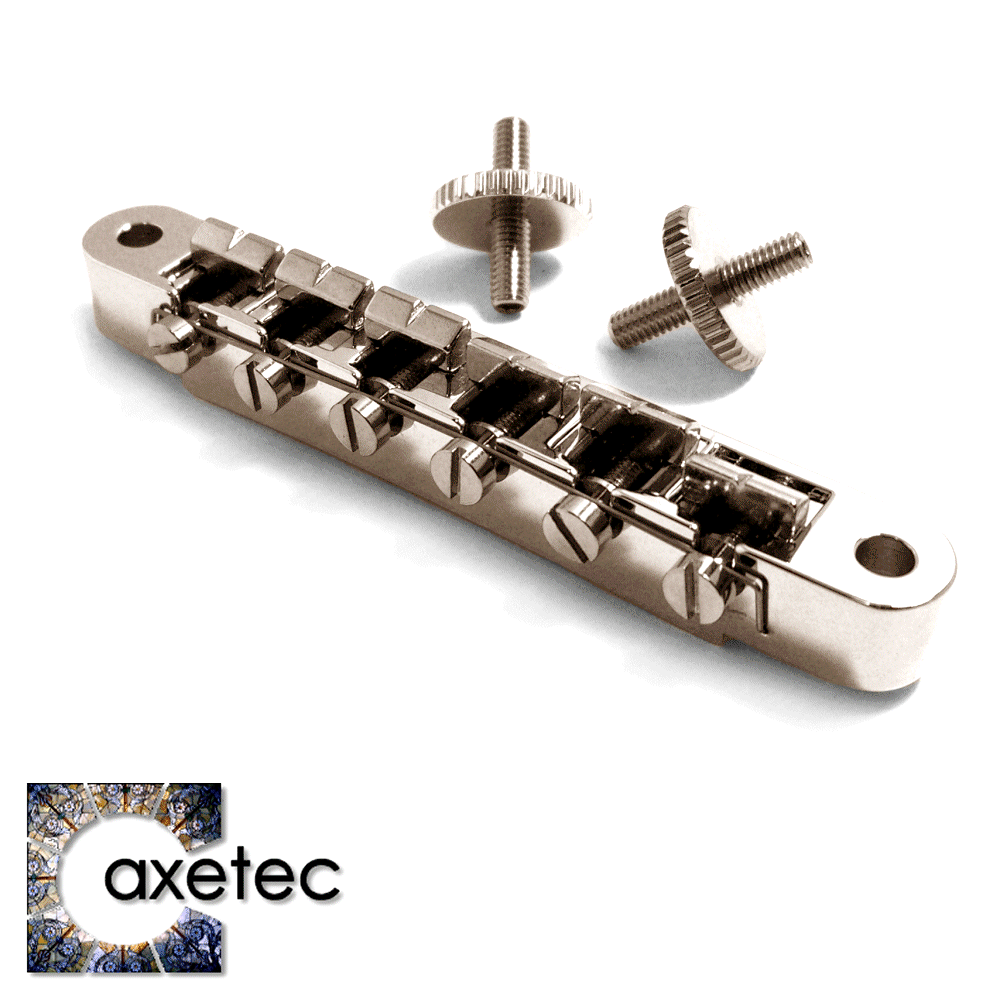

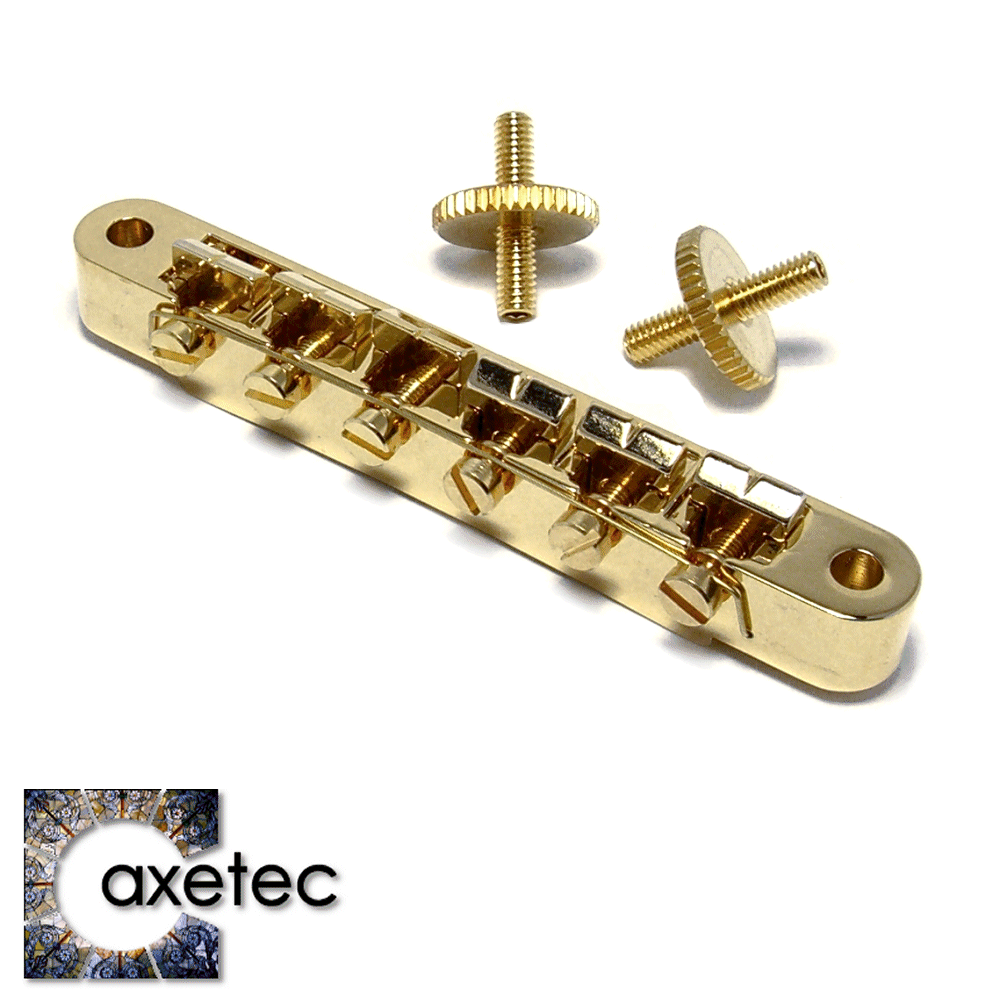

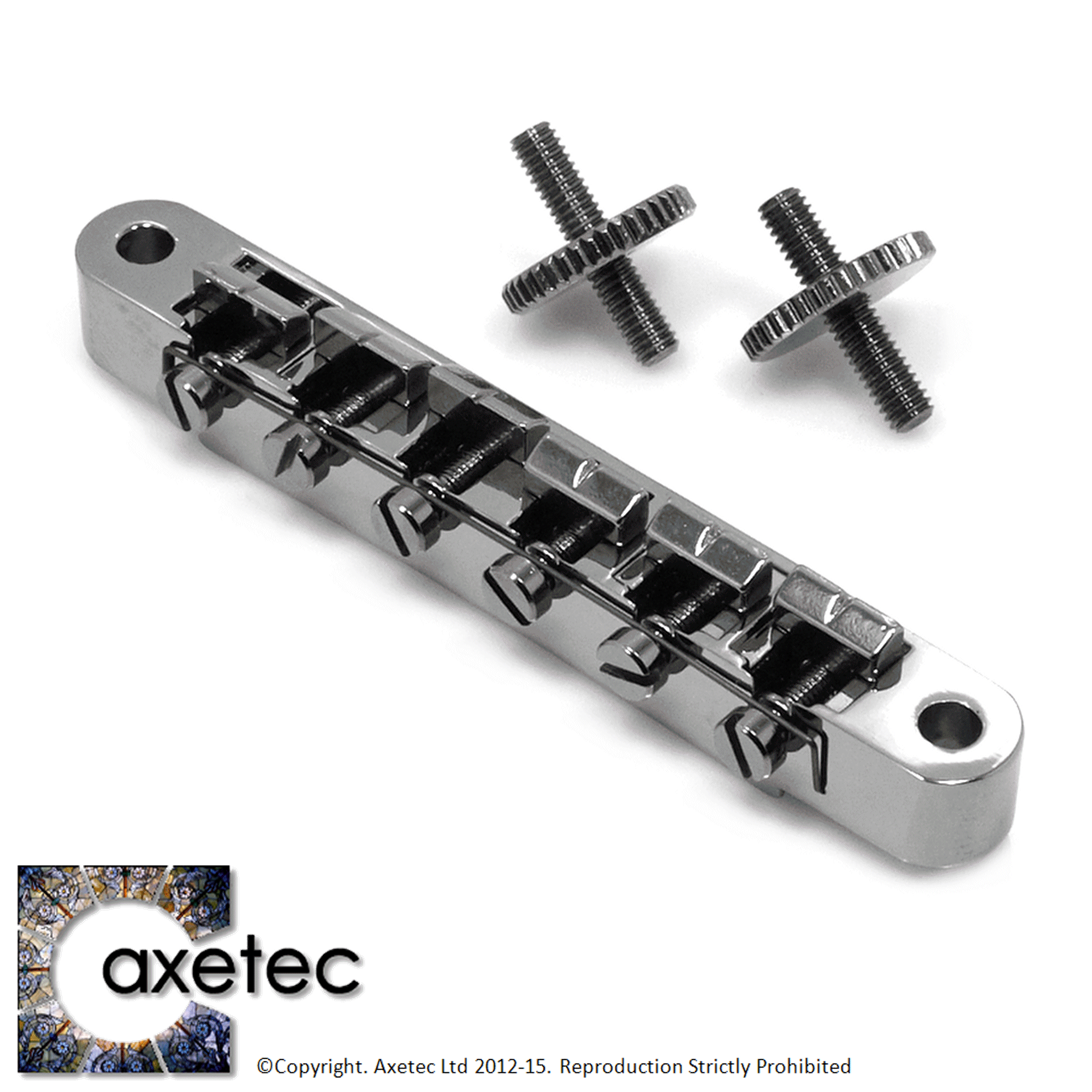

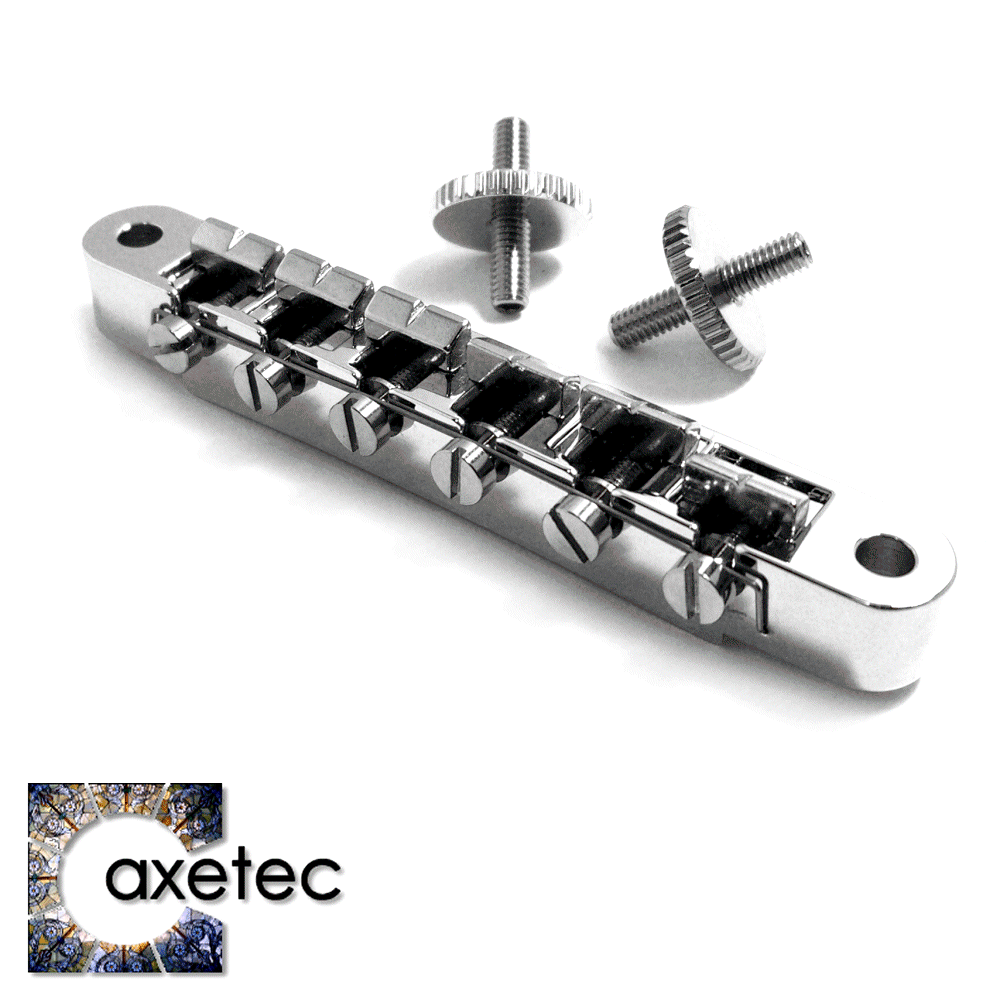

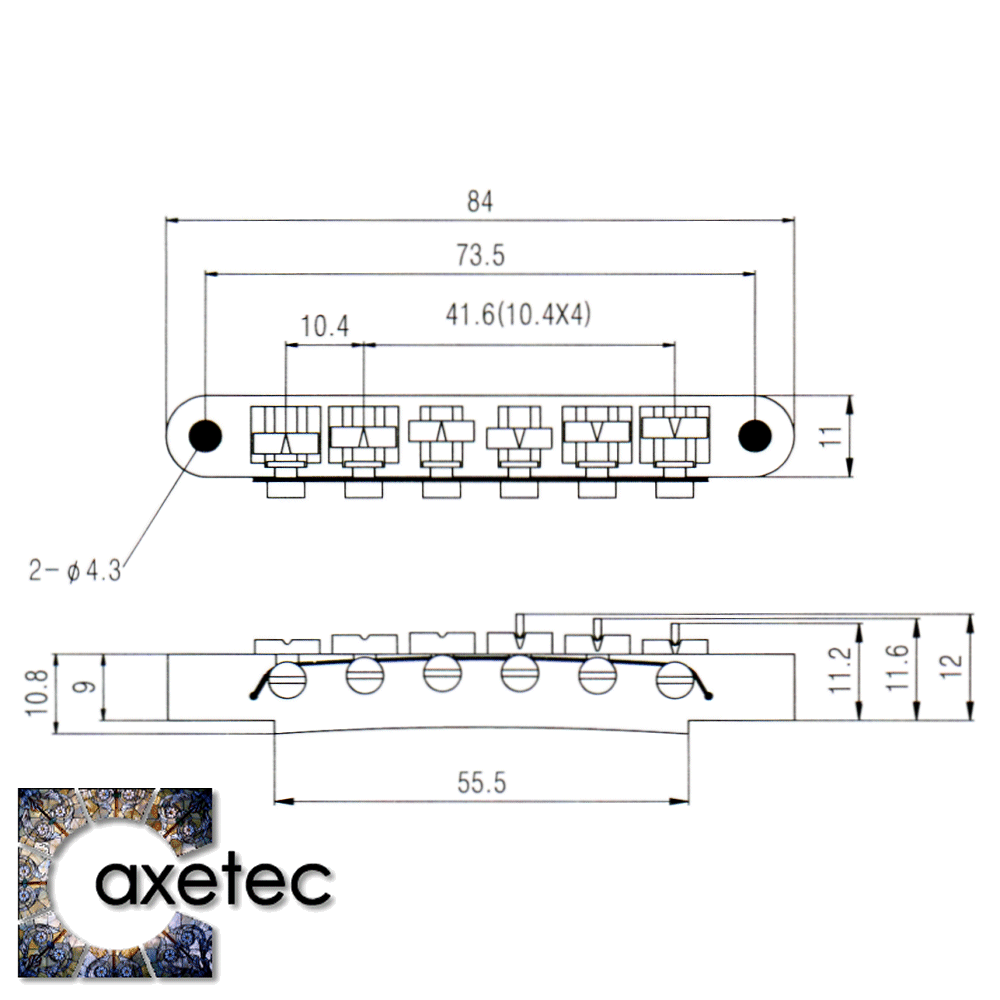

BRLP01 — LP Bridge (ABR Style, 4.2 mm posts)
Vintage ABR-style tune-o-matic bridge with 4.2 mm mounting posts.
Slim profile and small-diameter posts — for guitars built with the smaller of the two common LP post sizes.
From £9.00 inc. VAT · Bridge with chrome saddles & adjustment hardware (mounting posts sold separately or supplied with bridge — see spec)
- Style
- ABR (vintage tune-o-matic)
- Mounting Posts
- 4.2 mm
- Saddle Retainer
- Wire
- Saddles
- Solid (intonatable)
- Finishes
- Chrome · Gold · Nickel · Black Nickel

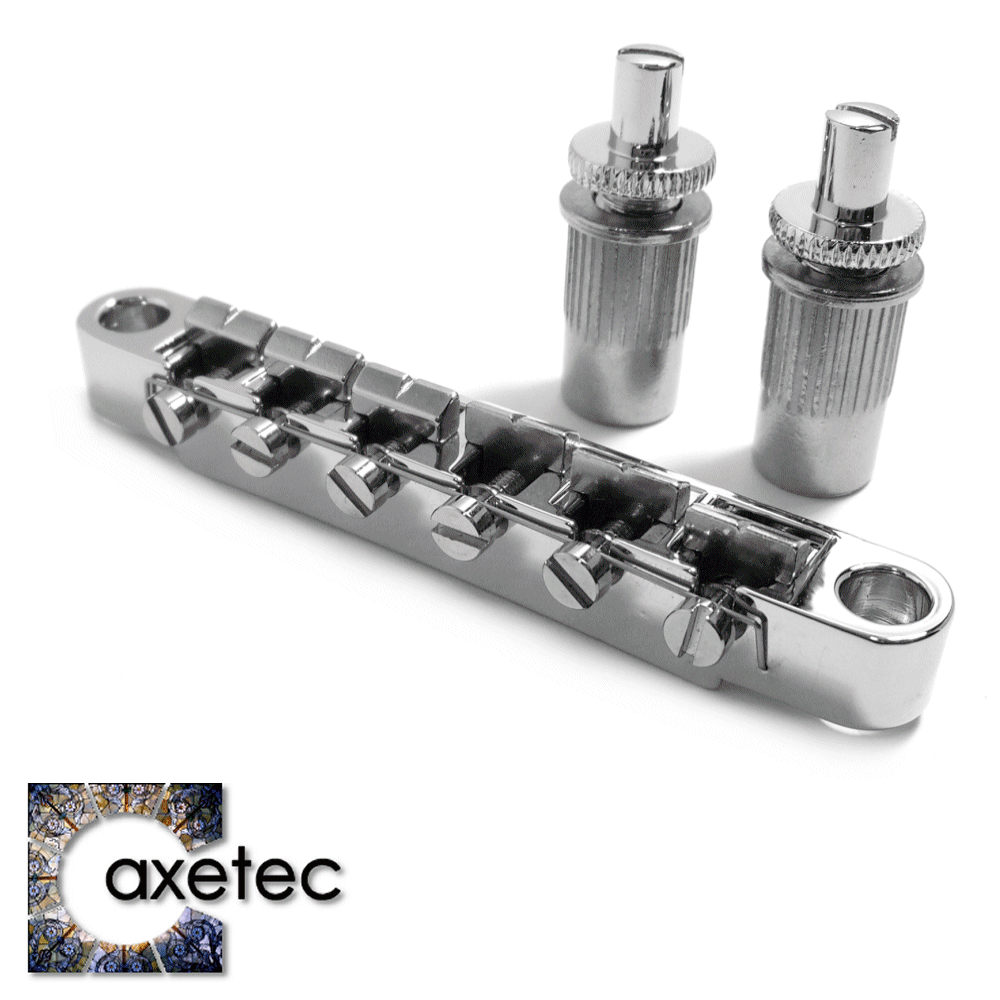

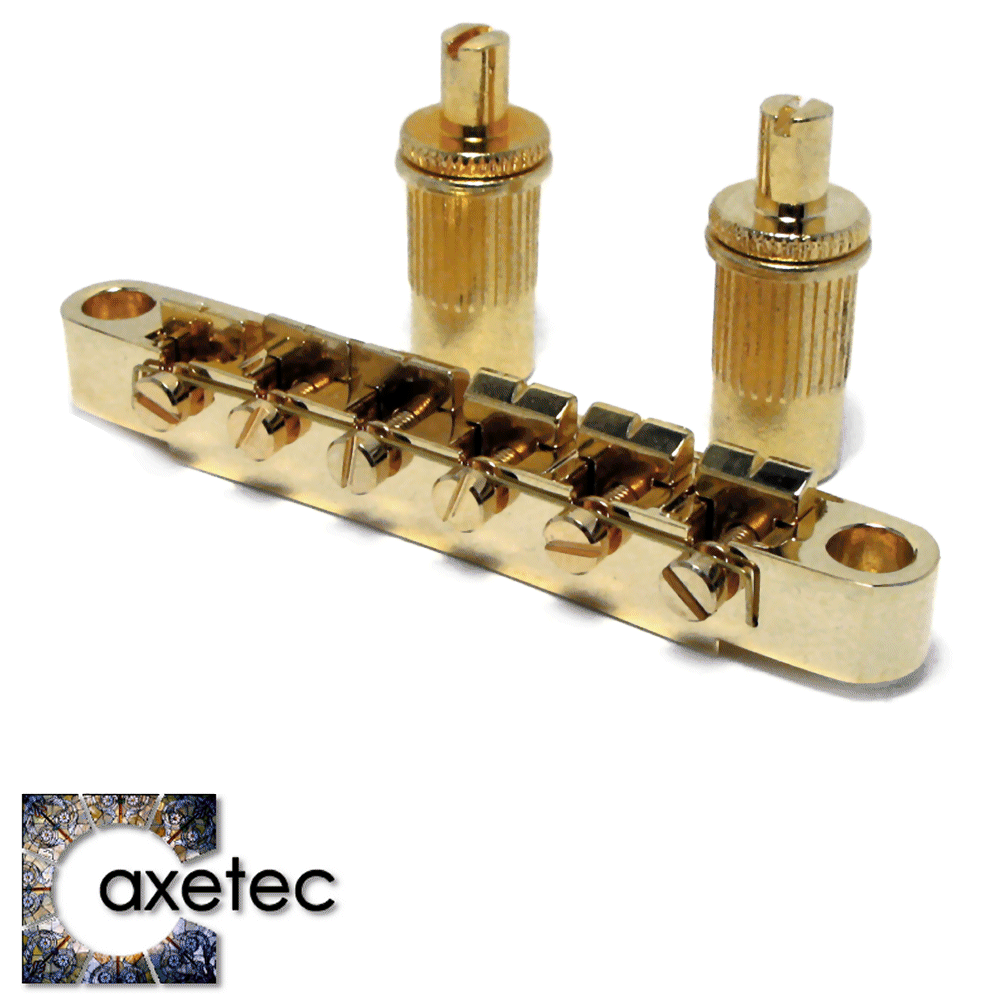

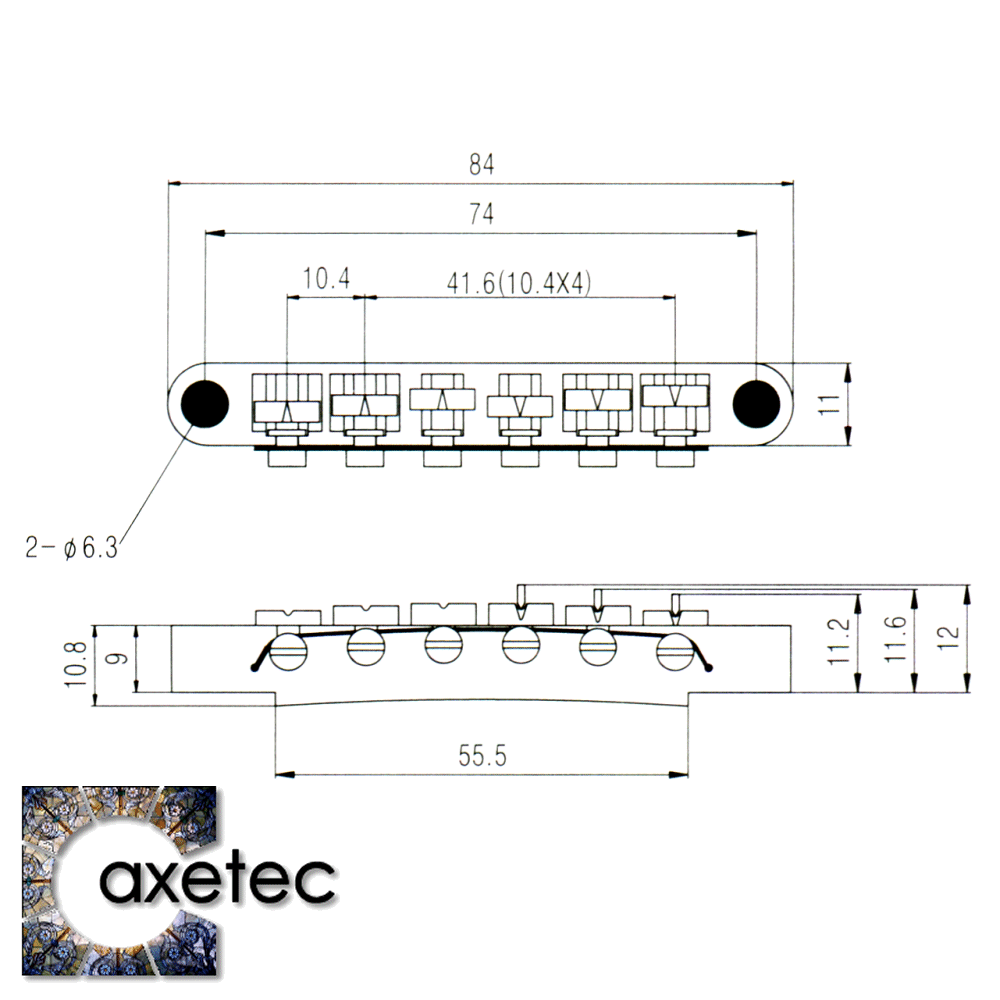

BRLP02 — LP Bridge (ABR Style, 6.3 mm posts)
ABR-style bridge with 6.3 mm mounting posts and traditional wire saddle retainer.
The classic vintage look — wire-retained saddles for that authentic feel.
From £9.00 inc. VAT · Bridge with chrome saddles, wire retainer & adjustment hardware
- Style
- ABR (vintage tune-o-matic)
- Mounting Posts
- 6.3 mm
- Saddle Retainer
- Wire (traditional)
- Saddles
- Solid (intonatable)
- Finishes
- Chrome · Gold

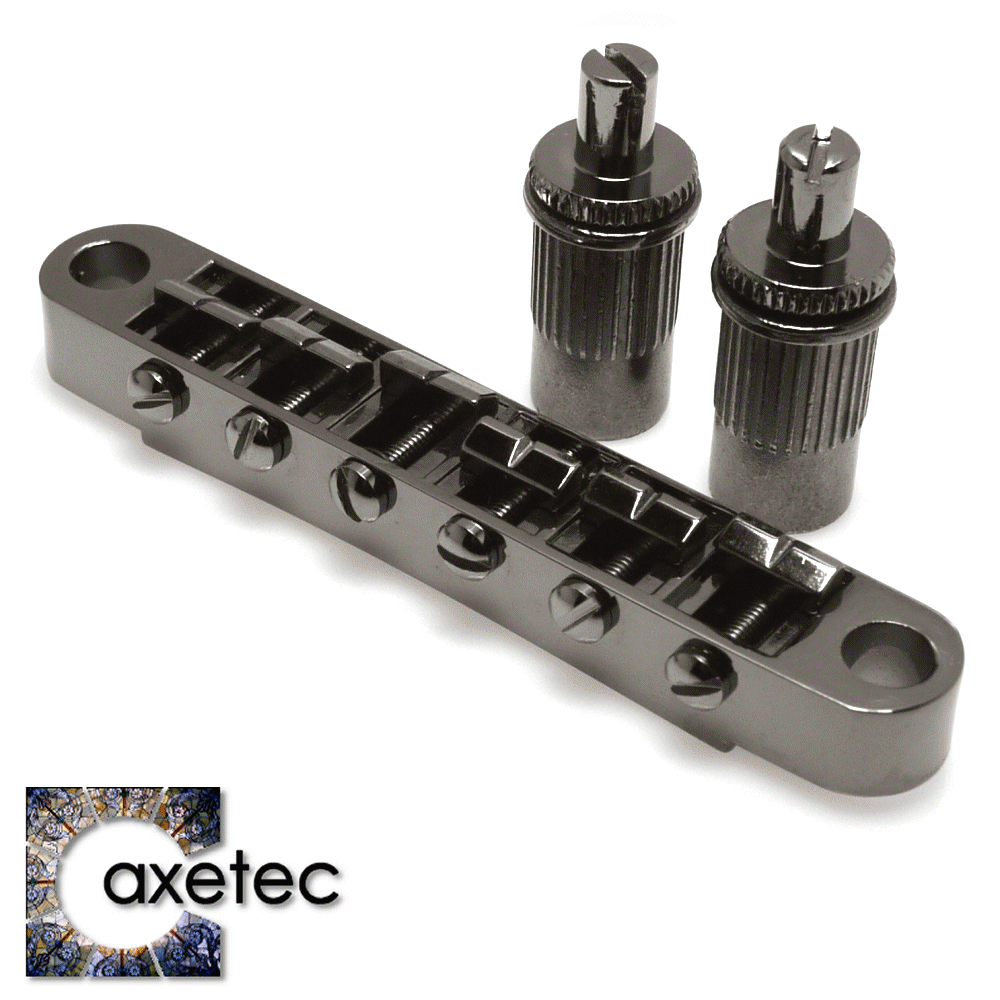

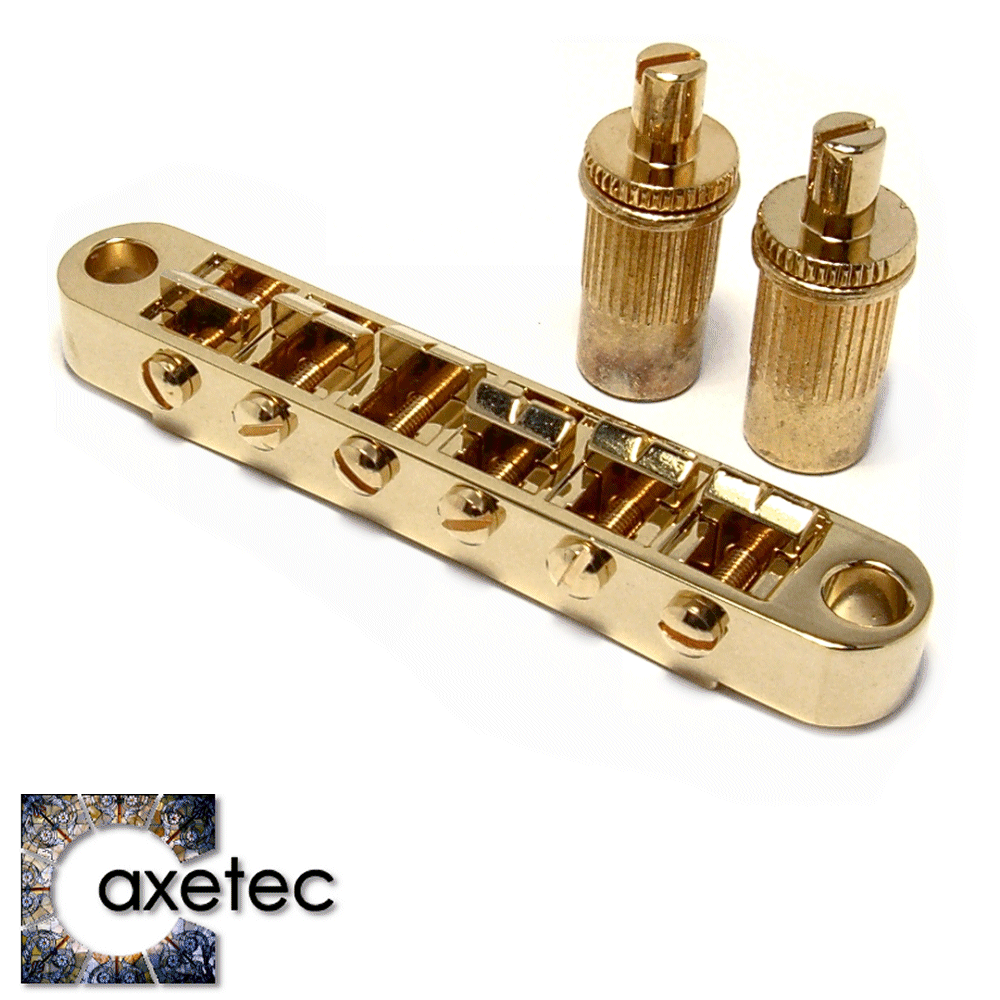

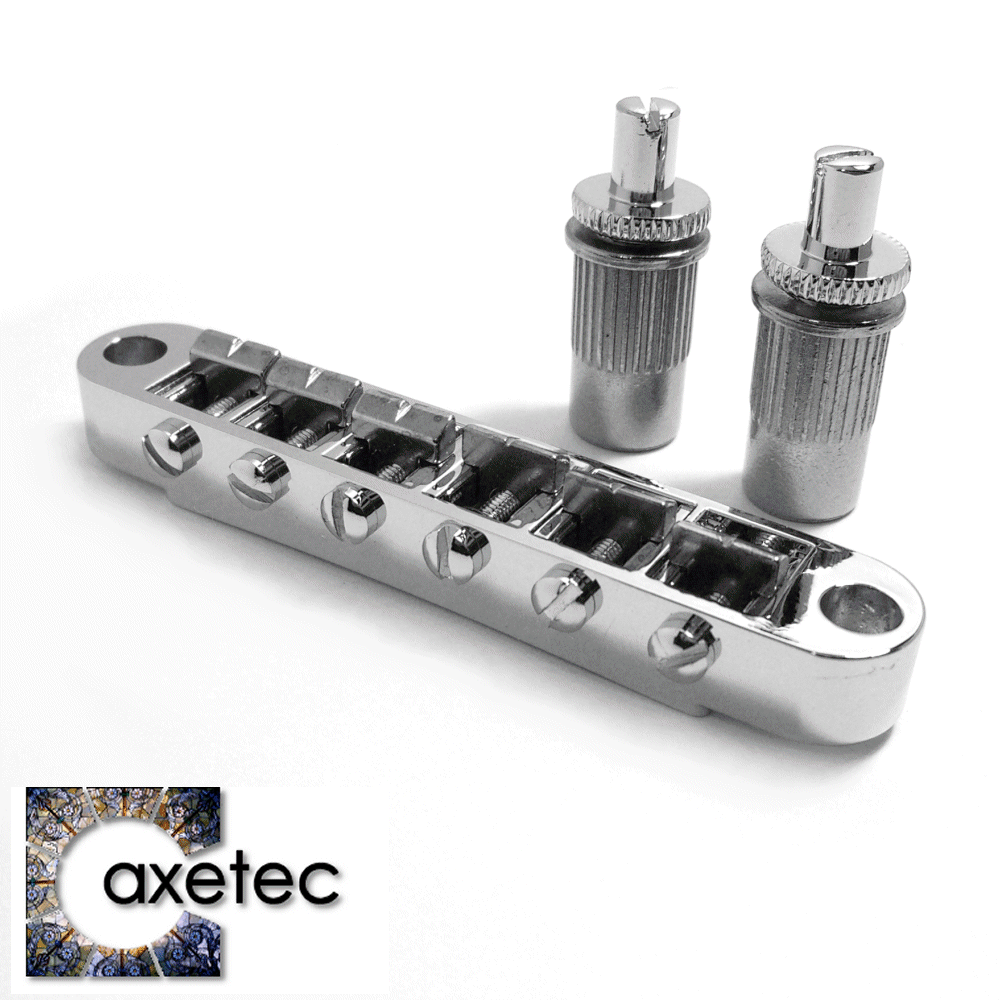

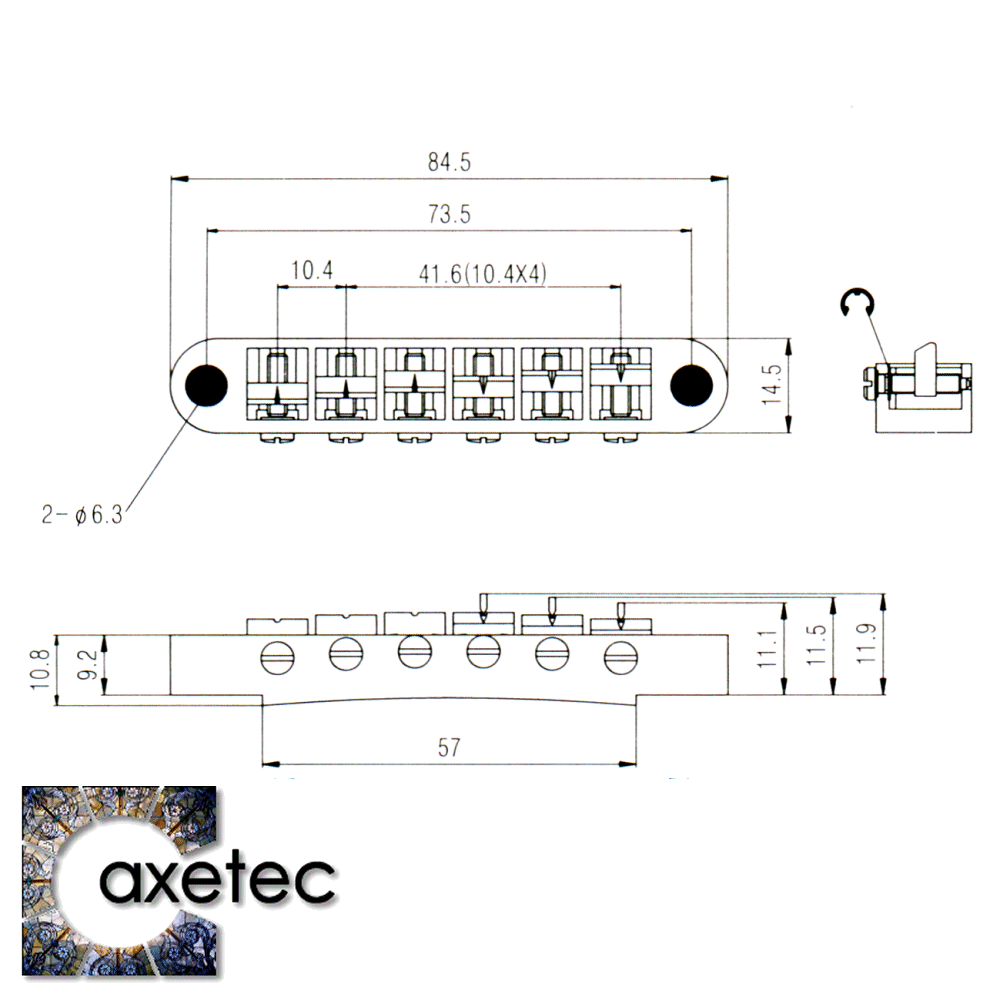

BRLP03 — LP Bridge (Nashville Style)
Modern Nashville-style tune-o-matic with 6.3 mm posts and wireless saddle design.
Cleaner look than the wire-retained ABR — saddles held in place by their own machined slots.
From £9.00 inc. VAT · Bridge with chrome saddles & adjustment hardware
- Style
- Nashville (modern tune-o-matic)
- Mounting Posts
- 6.3 mm
- Saddle Retainer
- Wireless (slotted)
- Saddles
- Solid (intonatable)
- Finishes
- Chrome · Gold · Nickel · Black Nickel

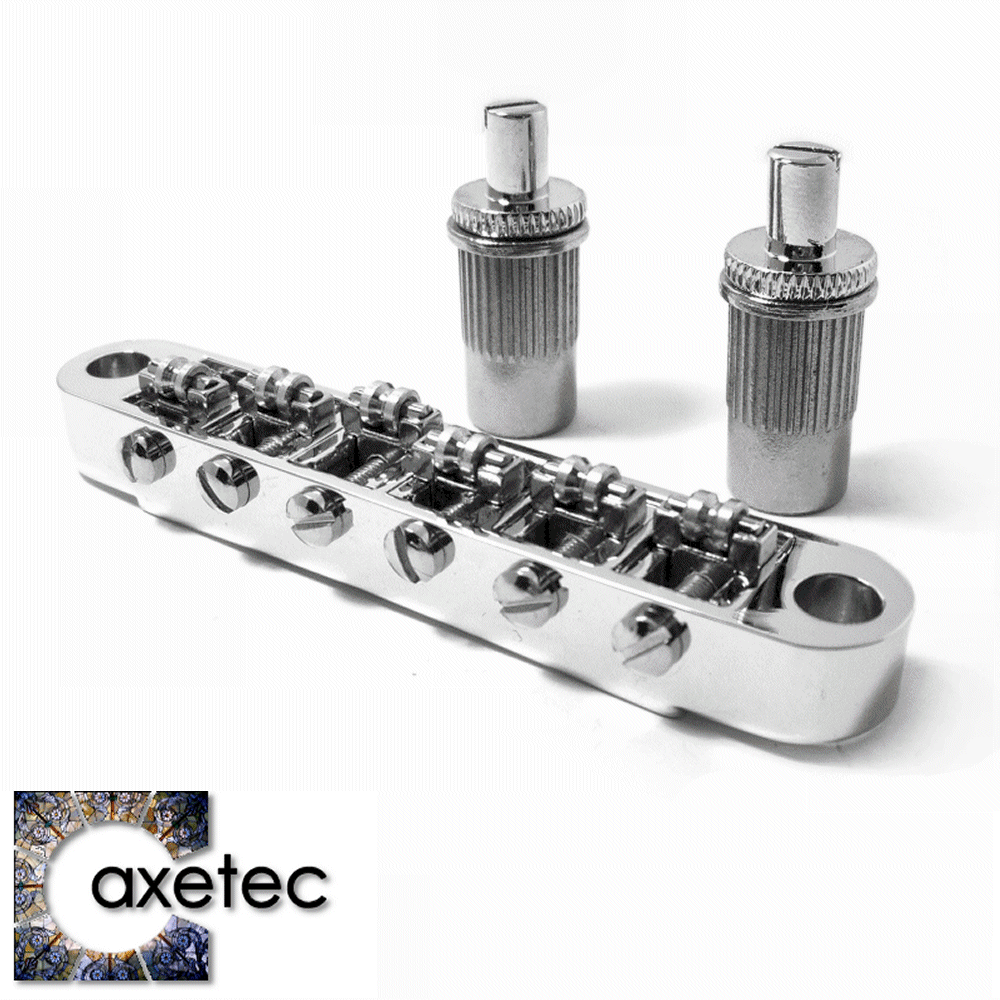

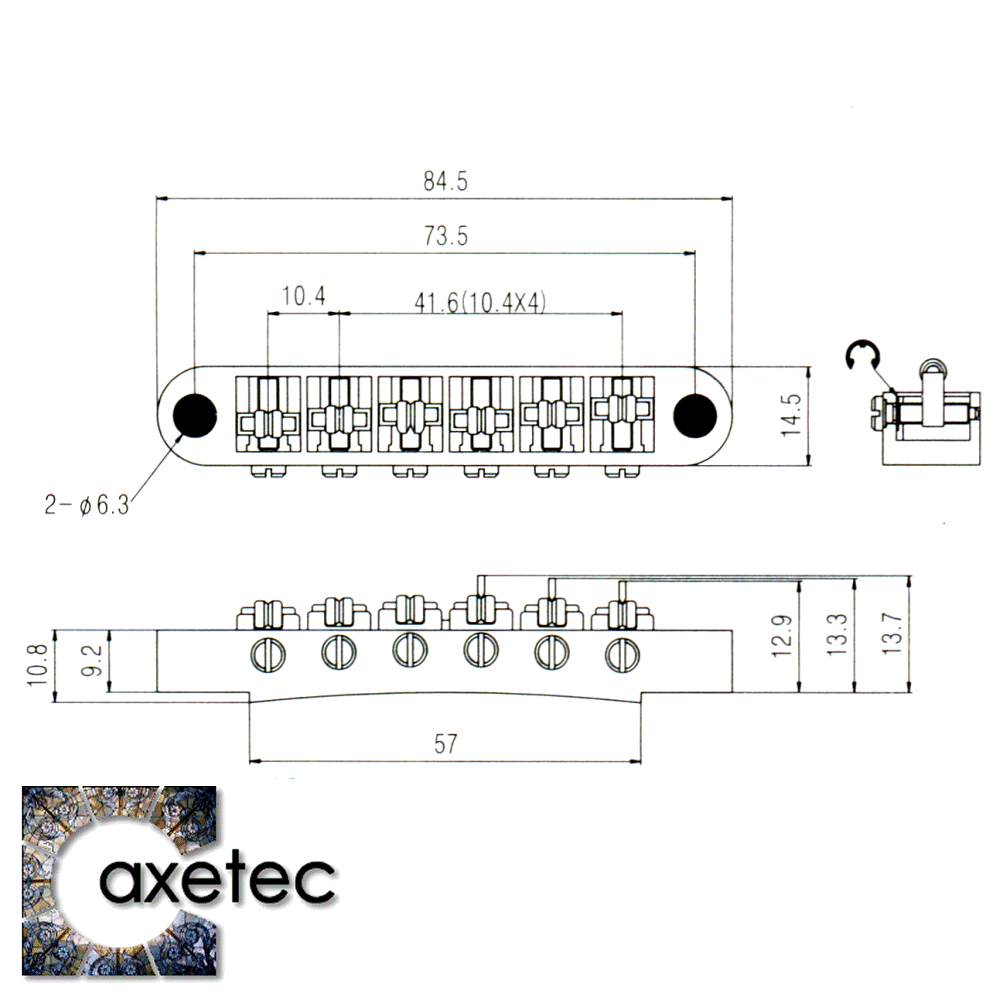

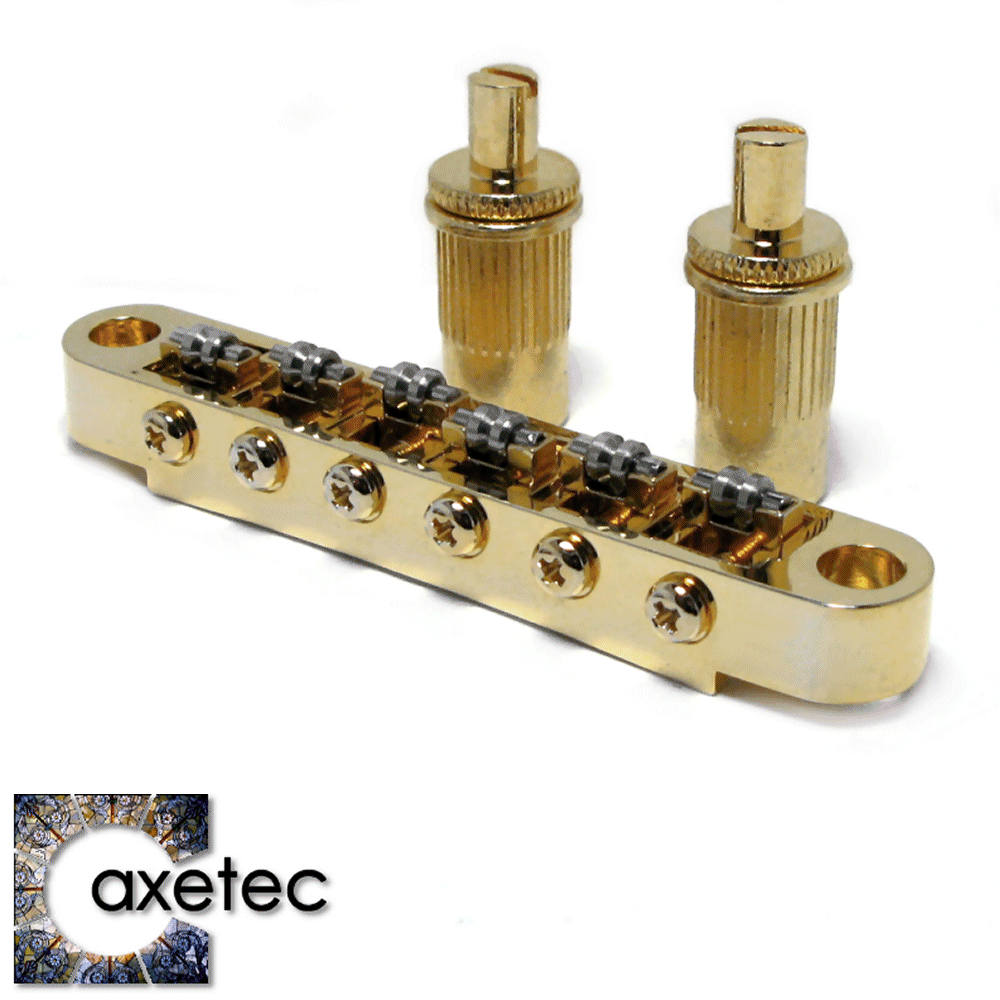

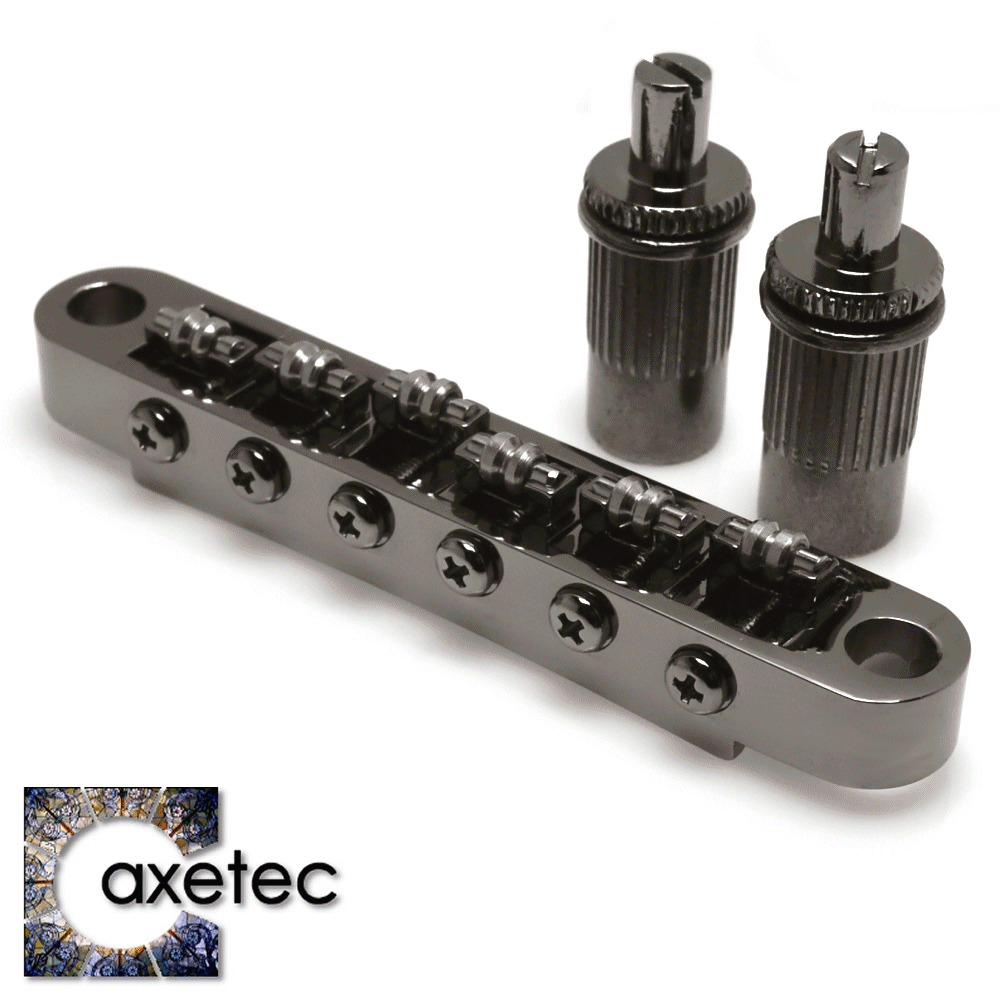

BRLP04 — LP Roller Saddle Bridge (6.3 mm posts)
Tune-o-matic bridge fitted with roller saddles. 6.3 mm mounting posts.
Excellent for tuning stability — particularly when paired with a Bigsby tremolo. Often cures string-breakage problems too.
From £16.50 inc. VAT · Roller-saddle bridge with adjustment hardware
- Style
- Roller-saddle tune-o-matic
- Mounting Posts
- 6.3 mm
- Saddles
- Roller (6 × intonatable)
- Best For
- Bigsby-equipped guitars & string-break issues
- Finishes
- Chrome · Gold · Black Nickel

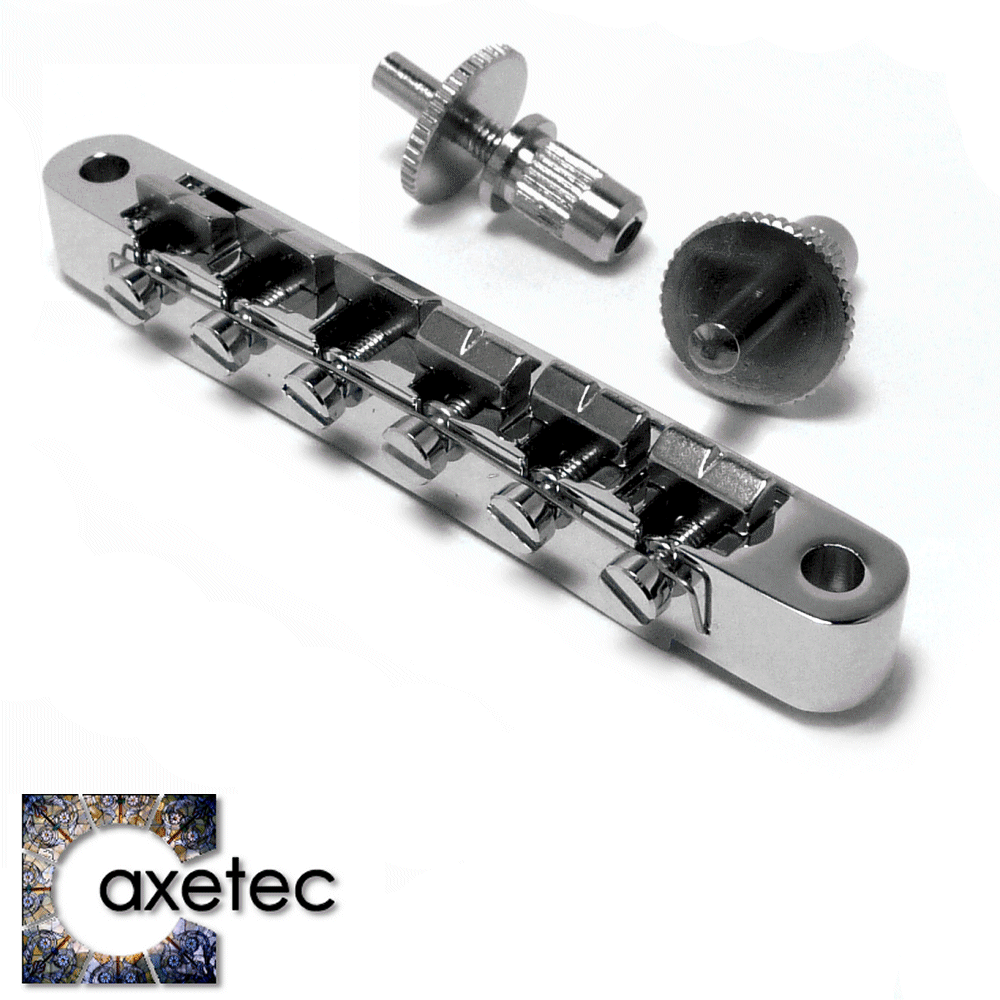

BRLP05 — LP Bridge (ABR Style + Sockets)
Identical to BRLP01 — but supplied with 4.2 mm posts that fit a 7 mm body socket.
Useful for guitars where the post sleeves are pressed into a 7 mm hole rather than directly into the body wood.
From £10.45 inc. VAT · Bridge with chrome saddles plus 4.2 mm posts and 7 mm sockets
- Style
- ABR (vintage tune-o-matic)
- Mounting Posts
- 4.2 mm
- Body Hole
- 7 mm sockets supplied
- Saddles
- Solid (intonatable)
- Finishes
- Chrome

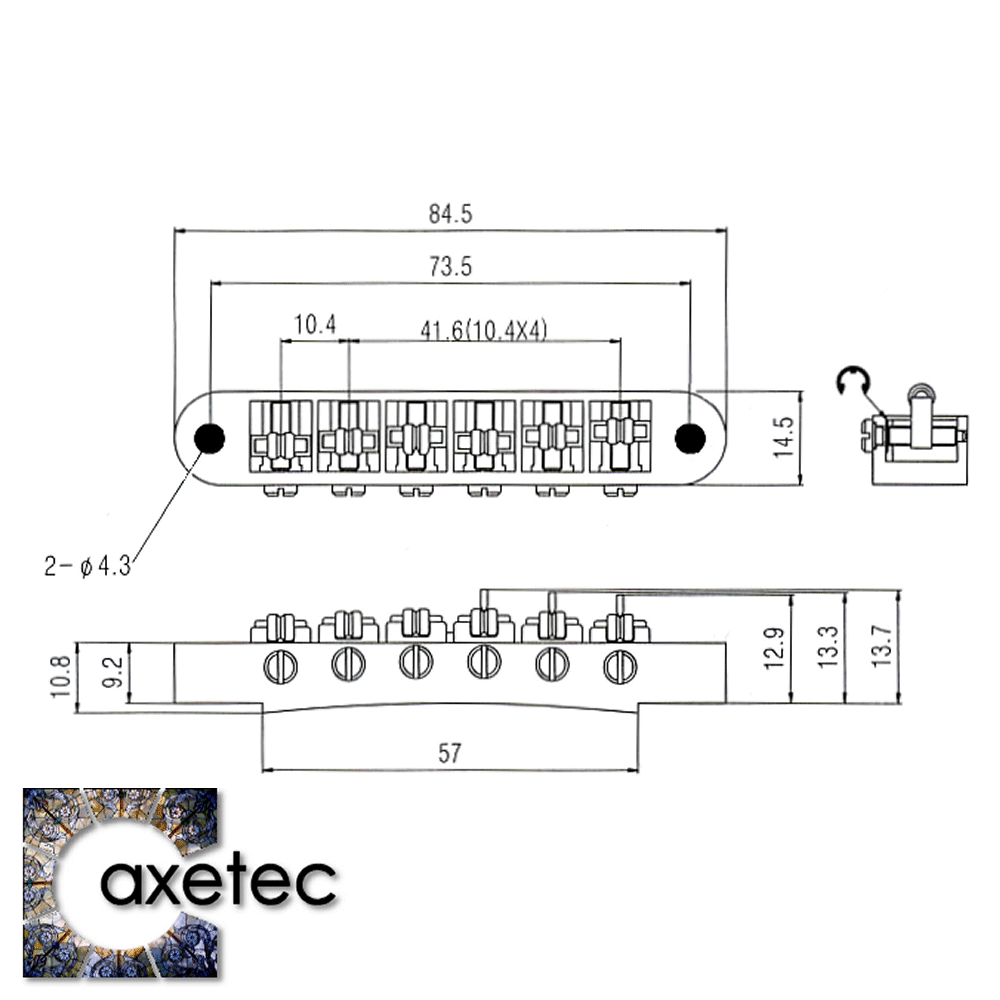

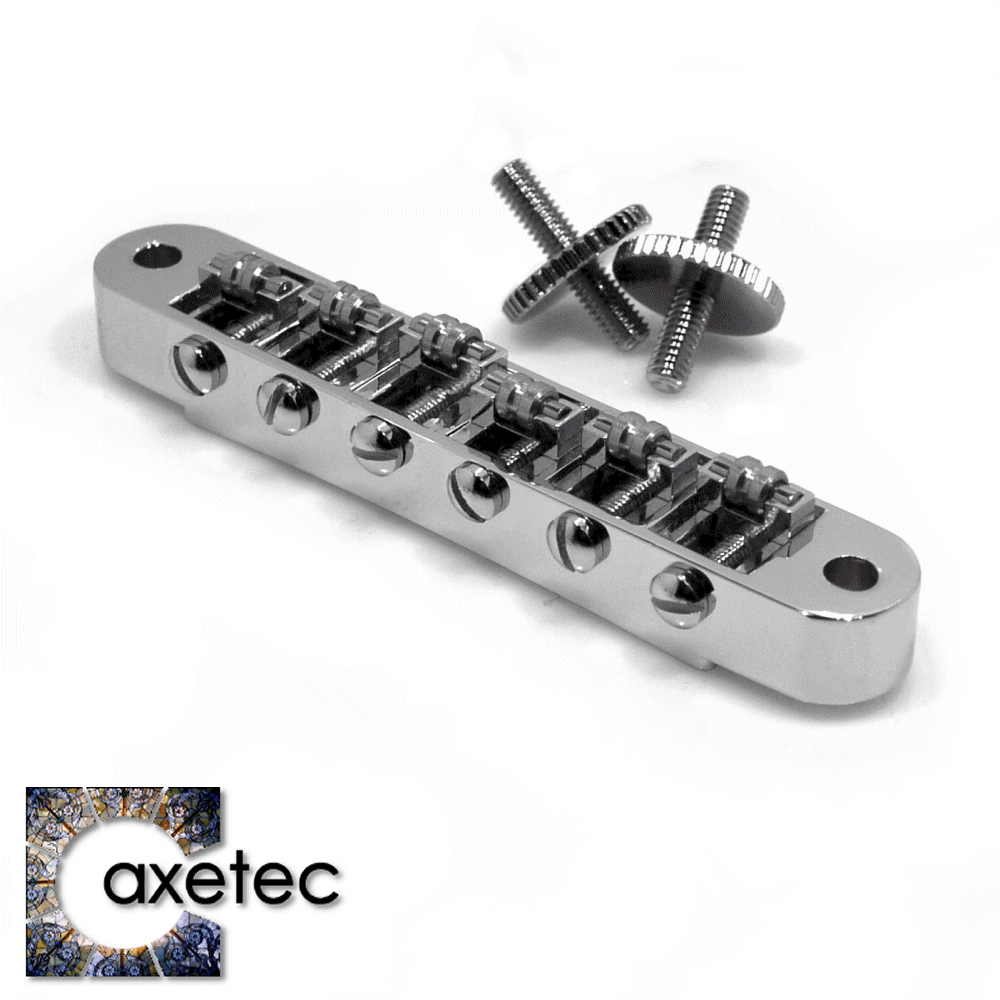

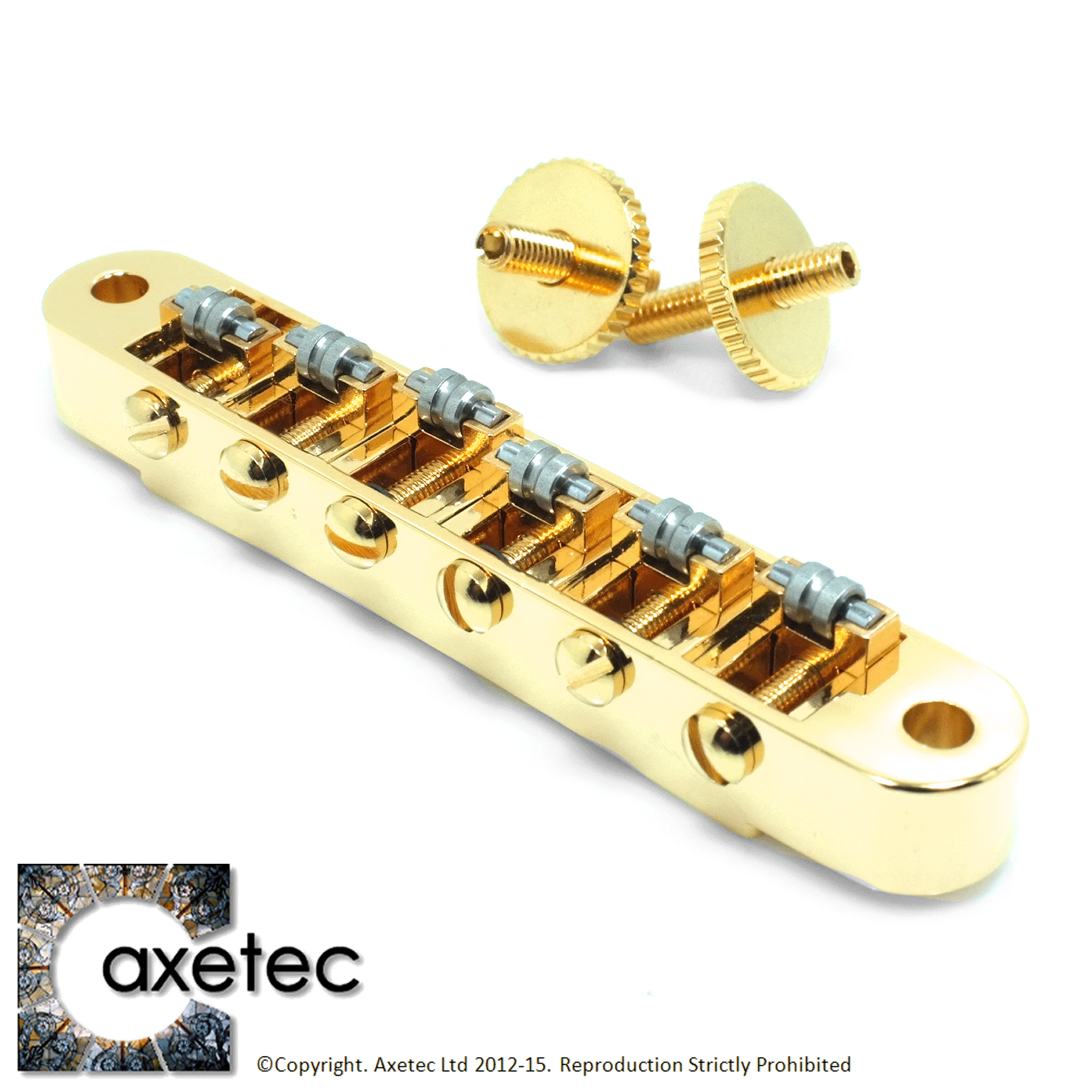

BRLP06 — LP Roller Saddle Bridge (4.2 mm posts)
Roller-saddle tune-o-matic with the smaller 4.2 mm mounting posts.
Functionally identical to the BRLP04 — same tuning-stability benefit — but designed for guitars with 4.2 mm posts.
From £16.50 inc. VAT · Roller-saddle bridge with adjustment hardware
- Style
- Roller-saddle tune-o-matic
- Mounting Posts
- 4.2 mm
- Saddles
- Roller (6 × intonatable)
- Best For
- Bigsby-equipped guitars & string-break issues
- Finishes
- Chrome · Gold
BTLP01 — LP Tailpiece
High-quality LP-style stop tailpiece — supplied complete with mounting posts.
Pairs with any of the LP bridges above to complete the classic stop-tail string anchor.
From £8.50 inc. VAT · Stop tailpiece with mounting posts
- Type
- Stop tailpiece
- Includes
- Tailpiece + 2 × mounting posts
- Pairs With
- BRLP01–BRLP06 LP bridges
- Finishes
- Chrome · Gold · Nickel · Black Nickel
Choosing the right bridge
Six bridges to choose from. BRLP01 & BRLP05 use 4.2 mm mounting posts (BRLP05 has a socket-style post). BRLP02 & BRLP03 both use 6.3 mm posts — BRLP02 has the traditional wire saddle retainer, BRLP03 is the modern wireless design. BRLP04 is essentially BRLP03 fitted with roller saddles, and BRLP06 is the same roller-saddle bridge but with 4.2 mm posts. Click any diagram thumbnail for an expanded view with detailed dimensions.
