Hook-Up Wire & Screening
Wire, screening tape and heatshrink — everything you need to wire up your guitar. Pre-tinned vintage cloth wire, modern hook-up wire, single-core screened cable, copper screening tape, tinned copper bus wire and assorted heatshrink tubing.
WRVCCW — Vintage Cloth-Covered Wire
Period-correct 22 AWG vintage hook-up wire — waxed-cloth insulation over pre-tinned conductors.
No stripping needed: just push the cloth back to expose the tinned core. Perfect for pots, jacks and switches when you want a vintage look.
£4.95 inc. VAT · 2 × 2 ft
- Gauge
- 22 AWG
- Insulation
- Waxed cloth, push-back style
- Conductors
- Pre-tinned solid copper
- Lengths
- 2 × ~2 ft (Cream + Black) — ~4 ft total
WRVBW — Vintage Cloth Braided Wire
Single-conductor braided cloth wire — the classic Les Paul control-cavity look.
5 ft single length — enough for an LP including three runs to the selector switch.
£9.95 inc. VAT · 5 ft
- Gauge
- 22 AWG
- Insulation
- Waxed-cloth inner with braided outer screen
- Conductors
- Pre-tinned solid copper
- Length
- 5 ft single conductor
WRHUW — Hook-Up Wire
Modern 22 AWG hook-up wire with heavy-duty PVC insulation — the dependable workhorse for control-cavity wiring.
2 × 1 metre lengths (yellow + black) — perfect for pots, jacks and selector switches.
£3.95 inc. VAT · 2 × 1 m
- Gauge
- 22 AWG
- Insulation
- Heavy-duty PVC
- Lengths
- 2 × 1 m (Yellow + Black) — 2 m total

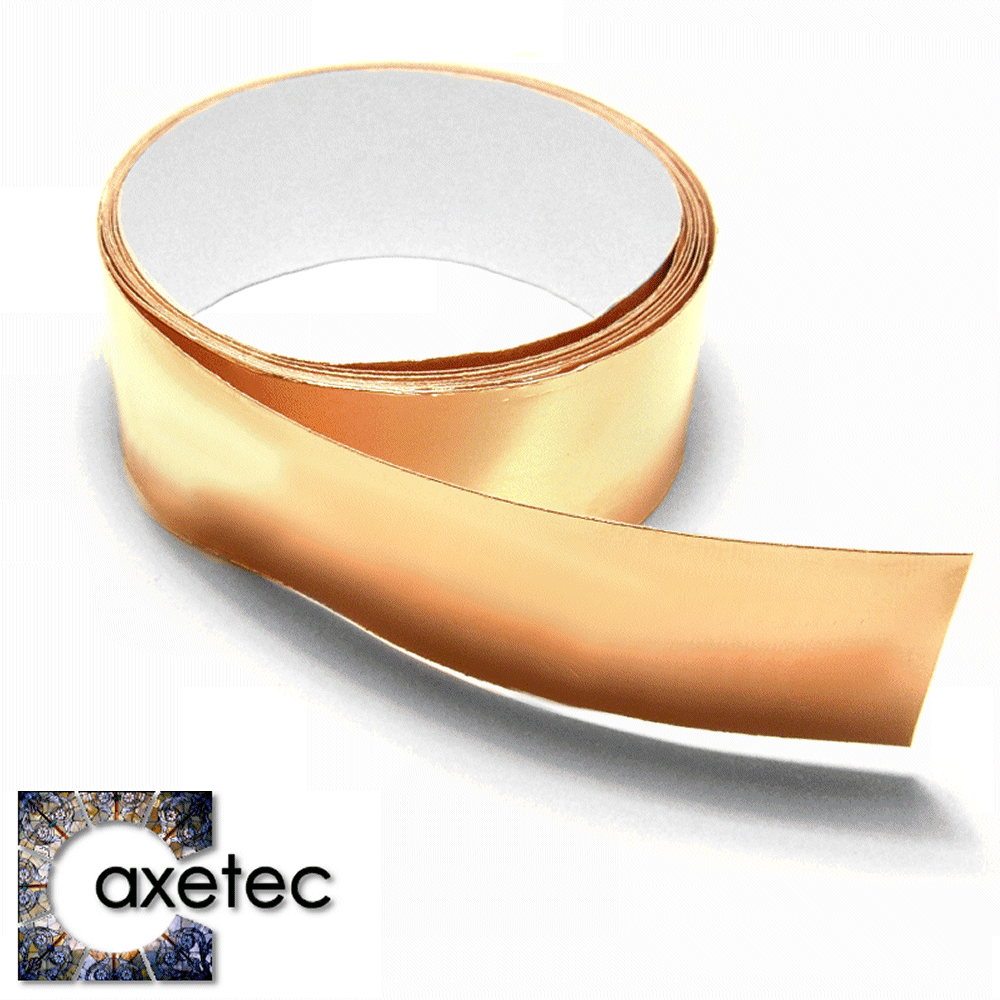

CPTP01 — Copper Screening Tape
Self-adhesive 60 mm copper screening tape — VERY effective at silencing noisy single coils.
Ideal for lining pickup and control cavities or screening the back of a scratchplate. Choose 1 m or 2 m below.
From £5.00 inc. VAT
- Material
- Self-adhesive copper foil tape
- Width
- 60 mm
- Use
- Pickup & control-cavity screening, scratchplate undersides
- Lengths
- 1 metre or 2 metres

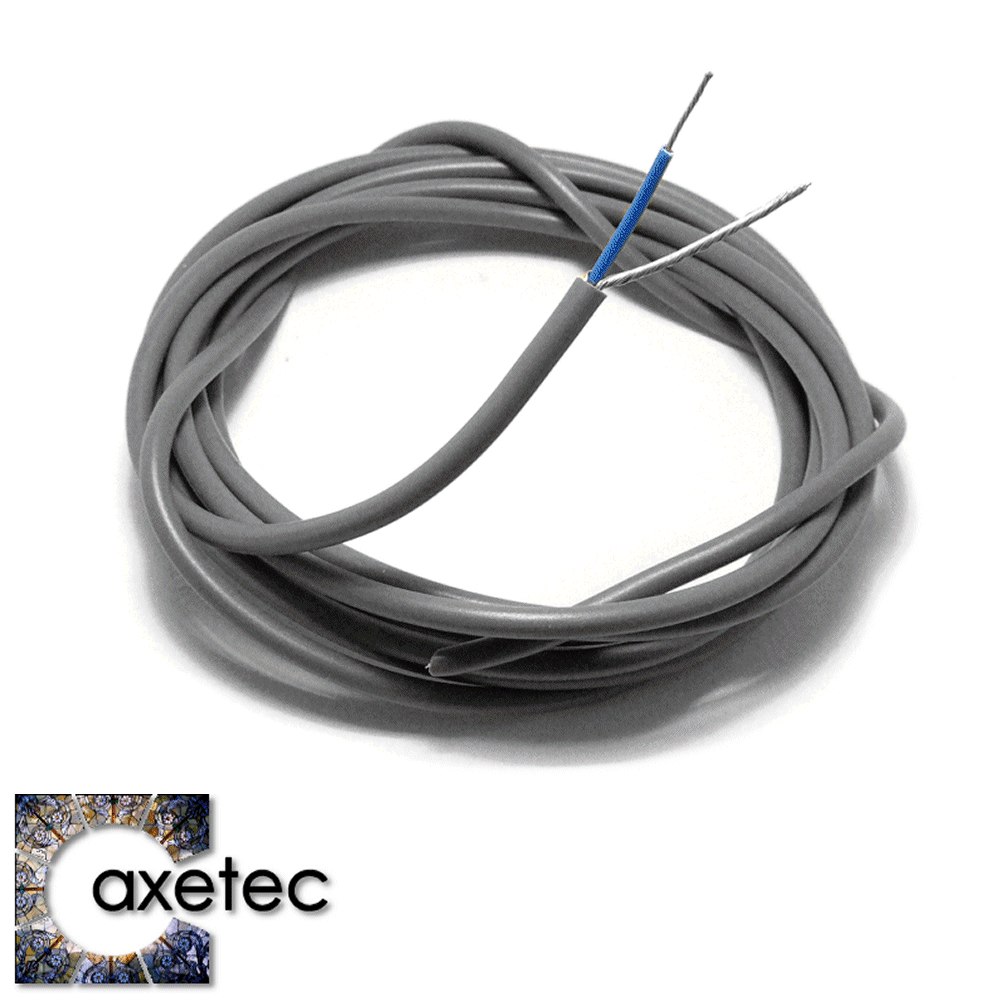

WRSCSC — Single-Core Screened Cable
2 metres of slim 3 mm-OD single-core screened cable — the standard for clean LP-style switch-to-cavity runs.
Keeps signal noise out and lets you keep your wiring tidy.
£3.00 inc. VAT · 2 m
- Type
- Single-core screened cable
- Outer diameter
- 3 mm
- Length
- 2 metres
- Use
- Control cavity ↔ pickup-selector switch on LP-style guitars

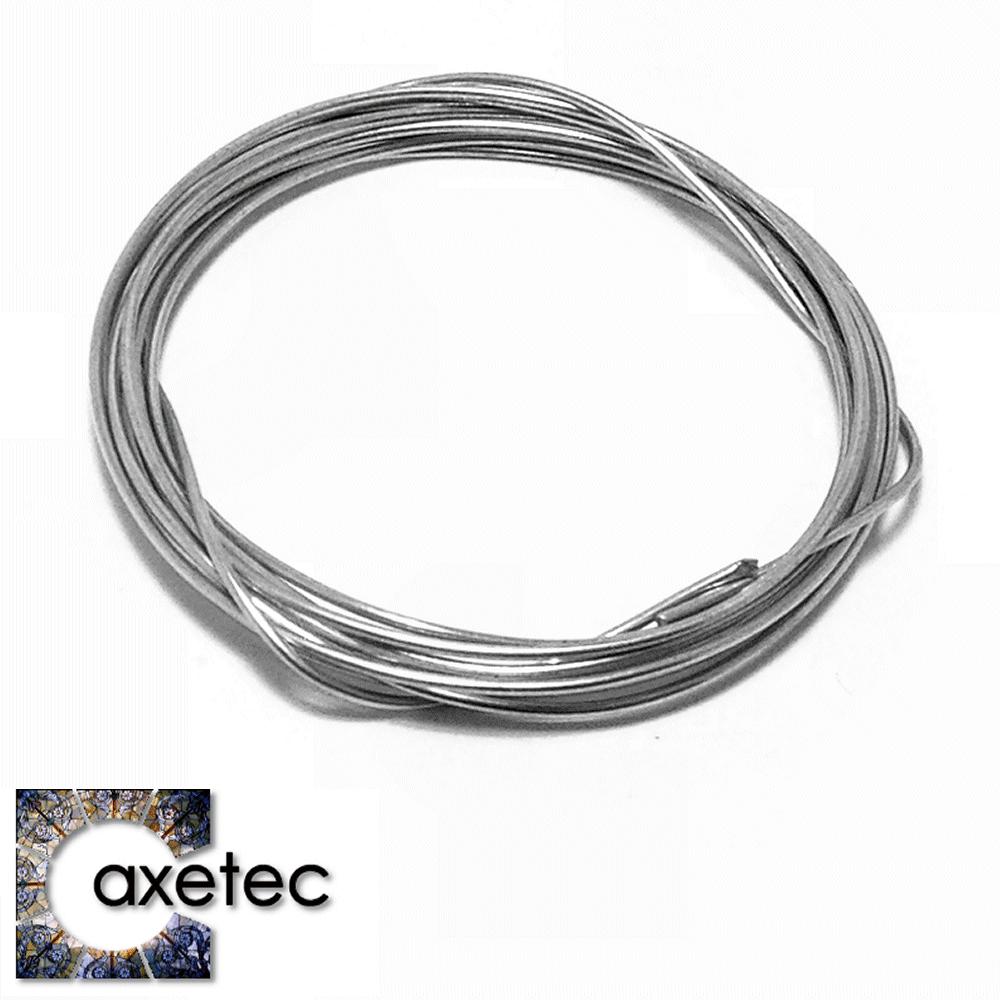

WR22TCW — Tinned Copper Bus Wire
22 SWG tinned copper bus wire — the standard for clean ground/earth runs between bridge and pots.
1 metre length, easy to bend and solder.
£0.50 inc. VAT · 1 m
- Gauge
- 22 SWG
- Material
- Tinned solid copper
- Insulation
- Bare (uninsulated)
- Length
- 1 metre

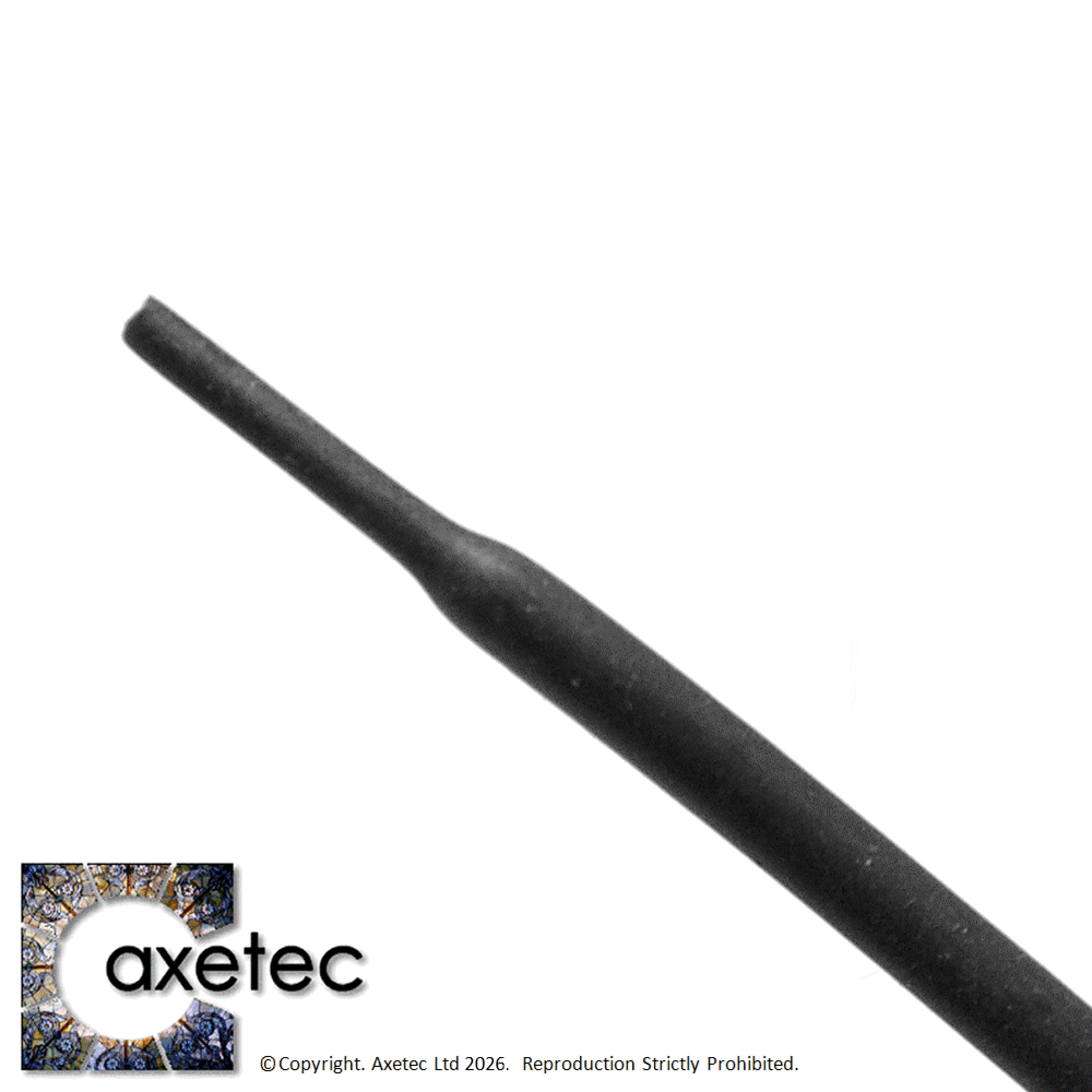

HTSH01 — Heatshrink Tubing
2-foot lengths of 2:1 heatshrink tubing — neatens up exposed solder joints and stripped conductors.
Choose your diameter below. Shrink with a heat gun or hair dryer (a soldering-iron tip will work in a pinch — but don't touch the tube directly).
£1.45 inc. VAT · 2 ft length
- Type
- Polyolefin heatshrink, 2:1 shrink ratio
- Length
- 2 ft per length
- Sizes
- 2.4→1.2 mm · 3.2→1.6 mm · 4.8→2.4 mm · 6.4→3.2 mm
