A range of S-Style bridges to fit the vast majority of guitars. Sold as complete sets. Excellent quality throughout - all machining & casting is finished to very high specifications. Click on the photographs for close-ups.
Please see the notes at the foot of the page for an explanation of the differences in these bridges
BRST10: STRAT BRIDGE ASSEMBLY (Style 1)
BRST07: STRAT BRIDGE ASSEMBLY Style 2)
BRST06: STRAT BRIDGE ASSEMBLY (Style 3)
BRST05: STRAT BRIDGE ASSEMBLY (Style 4)
Five bridges!? - What's the difference?

If you're looking for a bridge for a "new-build" guitar, the difference between these bridges is largely stylistic rather than related to performance. The main choice to make is if you prefer the "6 screw" mounting arrangement of the BRST09/10 or the "mounting post" style of the BRST05, 06 or 07.

If you're looking for a replacement bridge, take a close look at how your existing bridge attaches to the top of the guitar. BRST09/10 are the more traditional 6-screw design, whereas BRST05,06 & 07 all utilise mounting posts in a more modern "fulcrum" arrangement.

The difference between BRST09 & BRST10 is the BRST09 has pressed steel saddles and, more importantly, 11.3mm string spacing and 2, 3/16" mounting hole spacing - making it an ideal replacement for many "traditional" US models.

The BRST11 is a pressed Steel saddle bridge like the BRST09, although this bridge has 52.5mm string spacing.

You'll need to measure between the existing "6 screws" or mounting posts and check the diagrams to make sure the bridge you choose will fit. It's also worth measuring your existing Trem Block (the chunky piece of metal between the bridge and the springs) - If yours measures 40mm deep, then it's the same as these bridges. If not, you'll probably find it's an interchangeable part. Drop me an email for more details.
keith@axetec.co.uk
brst10_diagram_200b.gif brst07_diagram_200b.gif brst06_diagram_200b.gif brst05_diagram_80_200b.gif
Click to
Expand
Click to
Expand
Click to Expand
Click to Expand

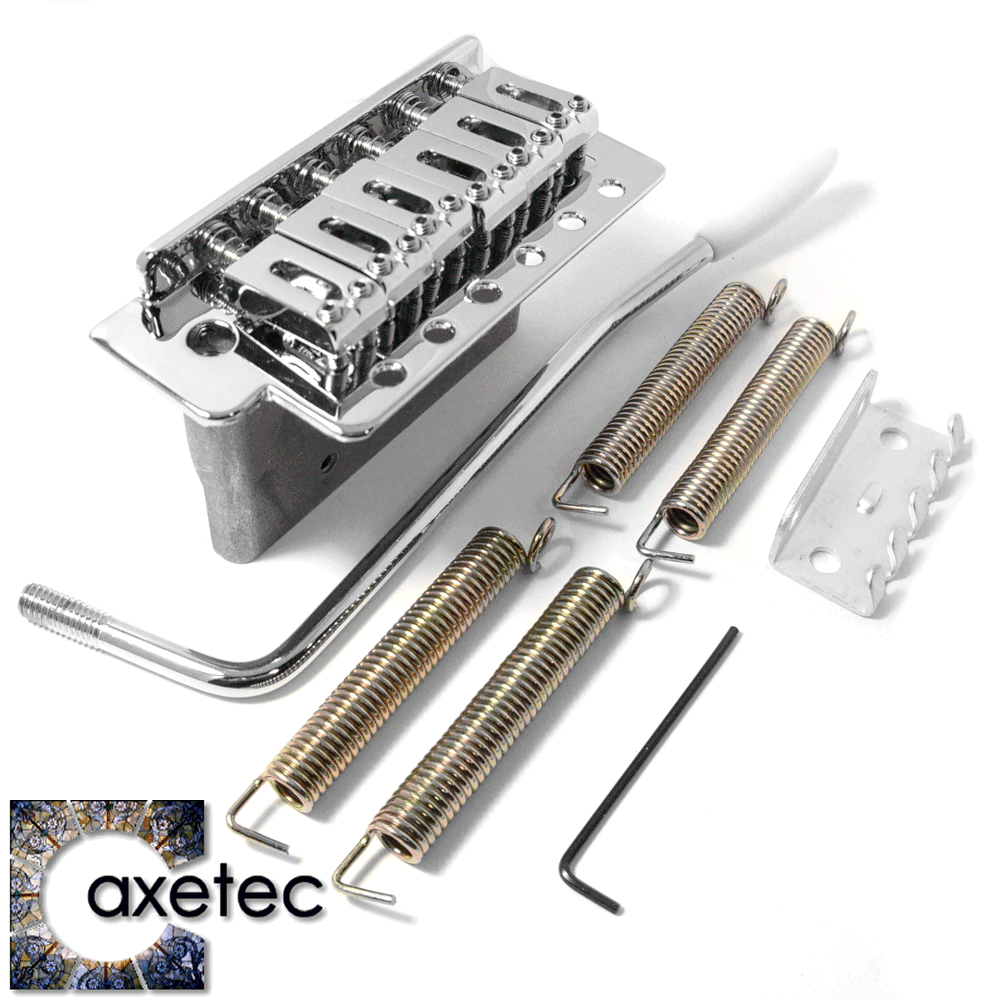

Complete assembly. This bridge fixes to the top of the guitar with the more traditional "6 screw" method. (Note: These screws, along with the claw screws, are supplied but not shown in the picture of the chrome saddle bridge)
Complete assembly. This bridge fixes to the top of the guitar with 2 mounting posts.

Click on diagram for precise dimensions.

See the notes at the foot of the page for an explanation of the differences in the bridges on this page.
Complete assembly. This bridge fixes to the top of the guitar with 2 mounting posts.

Click on diagram for precise dimensions.

See the notes at the foot of the page for an explanation of the differences in the bridges on this page.
Complete assembly. This bridge fixes to the top of the guitar with 2 mounting posts.

Click on diagram for precise dimensions.

See the notes at the foot of the page for an explanation of the differences in the bridges on this page.
brst10-chromesaddles-200.gif brst07-chromesaddles-200.gif brst05-chromesaddles-200.gif brst06-chromesaddles-200.gif

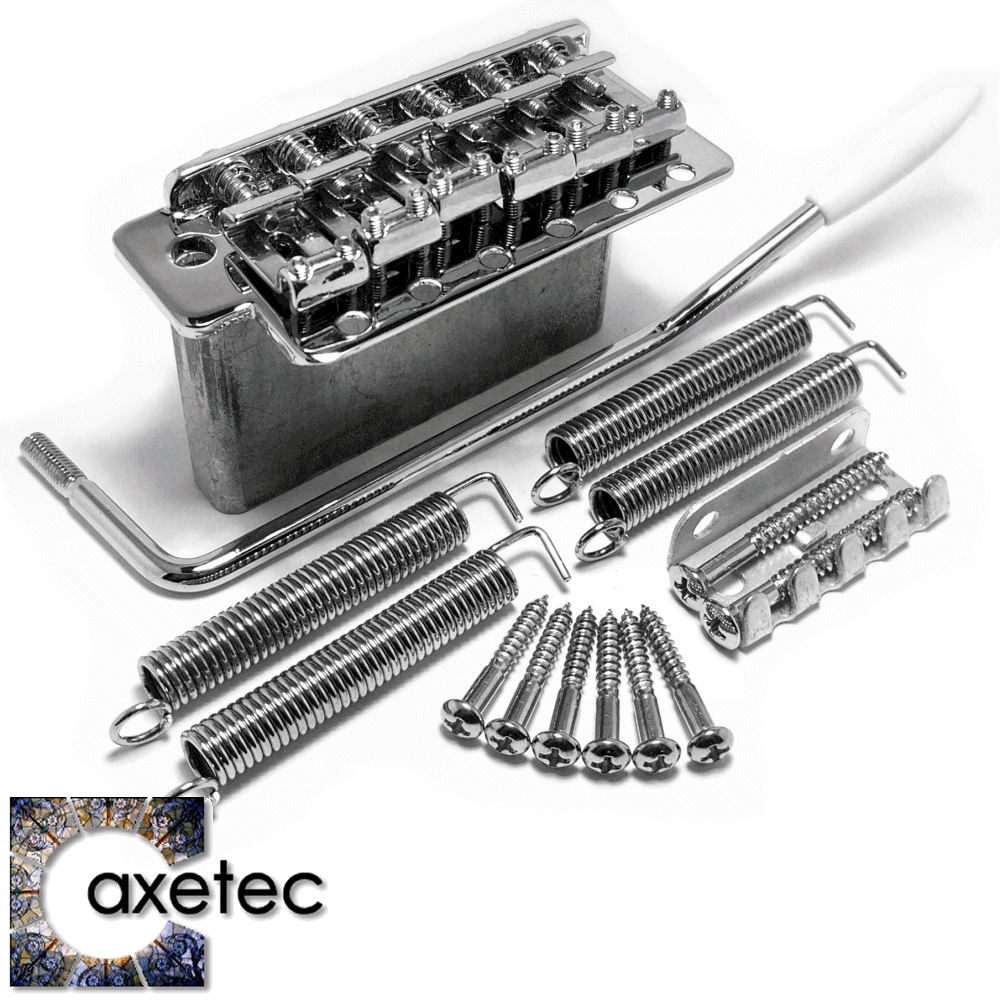

BRST09: STRAT BRIDGE ASSEMBLY (Style 5)
Complete assembly. This bridge fixes to the top of the guitar with the more traditional "6 screw" method.

This bridge has 11.3 mm string spacing with 2, 3/16" inches hole fixing hole centres

Trem block depth = 42mm

Click on diagram for precise dimensions

See the notes at the foot of the page for an explanation of the differences in all of the bridges on this page.
Dimensions:
Click to Expand
Click to Expand
Click to Expand
Click to Expand
String Spacing: 2, 1/16" Inches (52.5mm)
Click on the diagram for precise dimensions

See the notes at the foot of the page for an explanation of the differences in all of the bridges on this page.
String Spacing: 2, 3/16" Inches (56.5mm)
Fixing Centres: 2, 1/16" Inches (52.5mm)
Fixing Centres: 2, 3/16" Inches (56.5mm)
String Spacing: 2, 1/16" Inches (52.5mm)
Fixing Centres: 2" to 2, 3/16" Inches (50mm to 55mm) - (Variable)
String Spacing: 2, 1/16" Inches (52.5mm)
Fixing Centres: 2, 1/16" Inches (52.5mm)
String Spacing: 2, 1/16" Inches (52.5mm)
Fixing Centres: 2, 5/8" to 2, 3/4" Inches (67mm to 70mm) - (Variable)
TIP: The difference between BRST09 & BRST10 (above) is the BRST09 has pressed steel saddles and, more importantly, 11.3mm string spacing and 2, 3/16" mounting hole spacing - making it an ideal replacement for many "traditional" US models.
TIP: The difference between BRST10 & BRST09 (below) is the BRST10 has solid steel saddles and, more importantly, 10.5mm string spacing and 2, 1/16" mounting hole spacing.

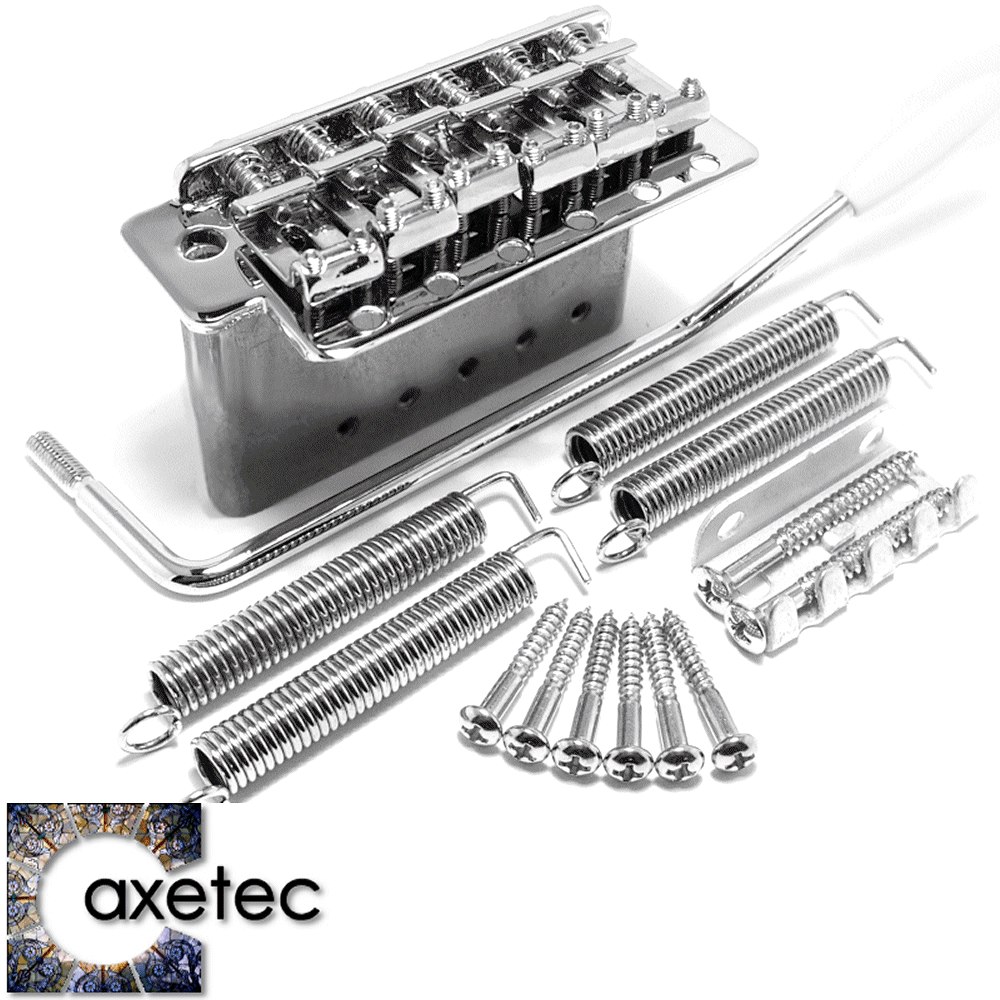

BRST11: STRAT BRIDGE ASSEMBLY (Style 6)
Complete assembly. This bridge fixes to the top of the guitar with the more traditional "6 screw" method.

This bridge has 52.5mm mm string spacing with 2, 1/16" inches (52.5mm) hole fixing hole centres

Trem block depth = 40mm

Click on diagram for precise dimensions

See the notes at the foot of the page for an explanation of the differences in all of the bridges on this page.
Dimensions:
Click to Expand

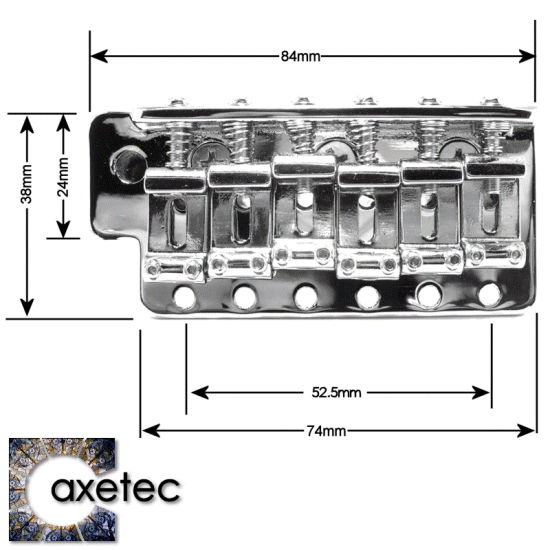

TIP: This bridge is almost identical to the BRST09 above. The difference is the
52.5mm string spacing & Fixing Centres.
String Spacing: 2, 1/16" Inches (52.5mm)
Fixing Centres: 2, 1/16" Inches (52.5mm)
Chrome + Chrome Saddles:
Stock Status
Chrome:
Stock Status
Chrome:
IN STOCK
Stock Status
Chrome + Chrome Saddles:
IN STOCK
Stock Status
Chrome + Chrome Saddles:
IN STOCK
Stock Status
Chrome + Chrome Saddles:
IN STOCK
Stock Status
